11 65 165 Removing and installing/replacing blow-off valve (N63)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Follow diagnosis instruction.
Remove exhaust turbocharger. See REMOVING TURBOCHARGER, RIGHT (CYLINDERS 1-4) or REMOVING TURBOCHARGER, LEFT (CYLINDERS 5-8) .

Release screws (1).

Tightening torque 11 65 9AZ .

Remove blow-off valve (2).

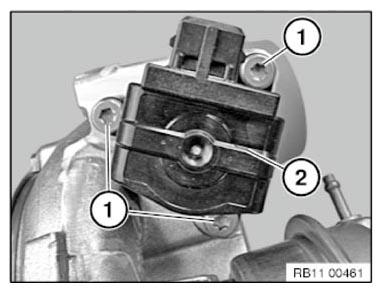

Fig 1: Identifying Blow-Off Valve And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Check VACUUM CONNECTIONS for correct routing.

Check VACUUM SYSTEM FOR LEAKS .

Assemble engine.
