11 34 552 Removing and installing/replacing all valves (N63)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary work:

Mount cylinder head (1) on special tool 11 9 000.

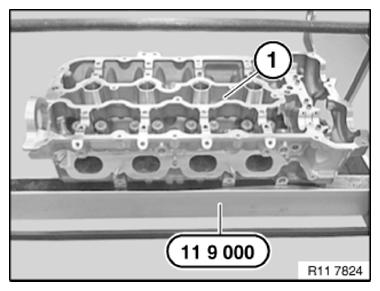

Fig 1: Mounting Cylinder Head On Special Tool 11 9 000
G10042963Courtesy of BMW OF NORTH AMERICA, INC.

Prepare special tool 11 9 008 on special tool 11 9 006 .

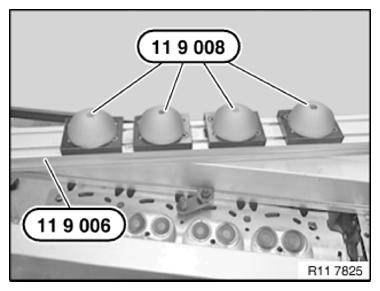

Fig 2: Identifying Special Tool 11 9 008
G10042964Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 11 9 006 with silicone cushion on cylinder head.

Slide locks (1) in direction of arrow and pretension with eccentric shaft.

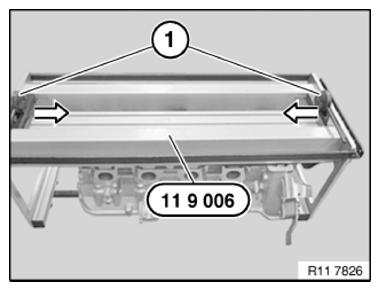

Fig 3: Positioning Special Tool 11 9 006 With Silicone Cushion
G10042965Courtesy of BMW OF NORTH AMERICA, INC.

Press down valve spring with special tool 11 8 840 .

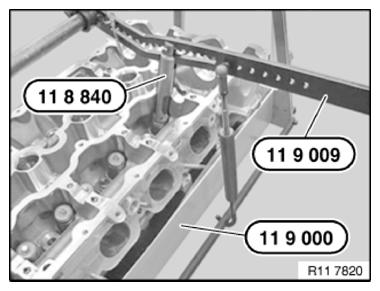

Fig 4: Pressing Down Valve Spring Using Special Tool 11 8 840
G10042966Courtesy of BMW OF NORTH AMERICA, INC.

Remove valve cotters (1) with a magnet.

Place valve springs and valve keys on special tool 11 4 480 in an orderly manner.

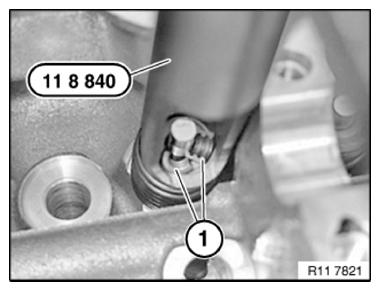

Fig 5: Removing Valve Cotters
G10042967Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Incorrect assembly possible.
Incorrect assembly will result in valve spring breakage.
Color marking (1) is normally on lower end of valve spring.
Only the diameter is decisive for the correct installation of the valve springs.
Install valve spring so that larger diameter points to spring plate at bottom.

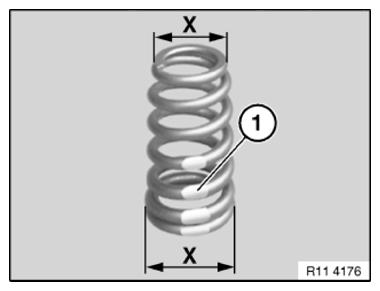

Fig 6: Identifying Valve Spring Color Marking
G10042968Courtesy of BMW OF NORTH AMERICA, INC.

Arrangement:

  1. Valve
  2. Valve stem seal with spring cup, bottom
  3. Valve spring
  4. Top spring cup
  5. Valve keys

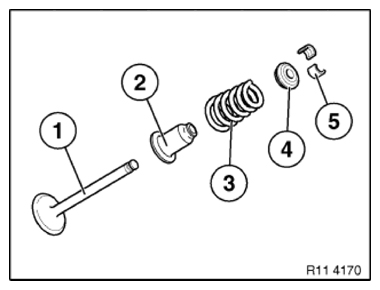

    Fig 7: Identifying Valve Stem Seal, Valve Spring, Top Spring Cup, Valve Keys
    G10042969Courtesy of BMW OF NORTH AMERICA, INC.

Release special tool 11 9 006 from cylinder head.

Remove all valves and place on special tool 11 4 480 in an orderly manner.

Fig 8: Releasing Special Tool 11 9 006 From Cylinder Head
G10042970Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
