11 12 106 Removing and installing right cylinder head (N63)

Special tools required:

• 11 4 470
• 81 22 2 184 136 (lifting table)

Necessary preliminary tasks:

• Drain coolant  . See 17 00 005 DRAINING AND ADDING COOLANT (N63) .
• Remove front axle completely with engine and transmission.

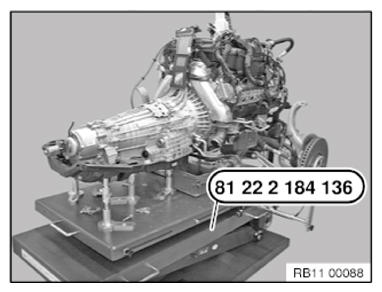

  The illustration shows the removed engine on a lifting table special tool 81 22 2 184 136.

  The illustration shows the E72

  Fig 1: Identifying Front Axle Removed With Engine/Transmission On Lifting Table

  Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks:

• Check TIMING .
• Remove INLET AND EXHAUST ADJUSTMENT UNIT ON RIGHT SIDE .

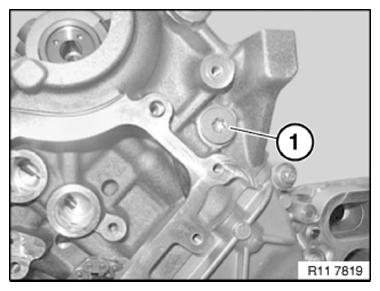

Release screw (1).

Fig 2: Identifying Screw Location

Courtesy of BMW OF NORTH AMERICA, INC.

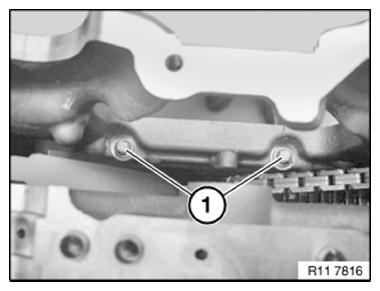

Release bolts (1) at front from cylinder head.

Fig 3: Identifying Bolts At Front Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

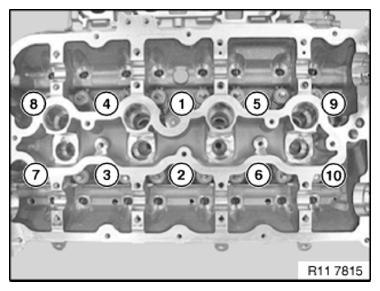

Release cylinder head bolts in sequence (10 to 1).

Remove all cylinder head bolts with washers.

Fig 4: Right Cylinder Head Bolts Tightening/Loosening Sequence (N63)

Courtesy of BMW OF NORTH AMERICA, INC.

Clean sealing faces of cylinder head and engine block; if necessary, remove gasket debris compound with special tool 11 4 470 . Make sure no gasket debris drops into the oil and coolant ducts.

Threaded bores in engine block must be free of dirt and oil (risk of cracking)  .

Check CYLINDER HEAD FOR LEAKS .

Check CYLINDER HEAD SEALING FACE  for surface evenness.

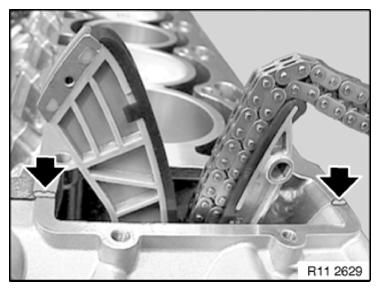

Coat joint between engine block and timing case cover with DREI BOND 1209 2.1 .

Fig 5: Identifying Sealing Joint Between Engine Block And Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

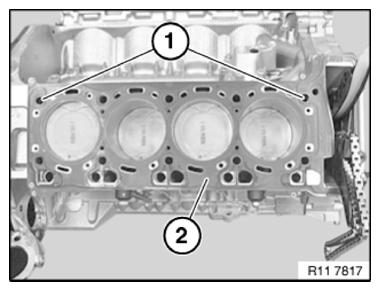

Check fitting sleeves (1) for damage and correct installation position.

Fit new cylinder head gasket (2).

Fig 6: Identifying Cylinder Head Gasket And Fitting Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

Put the cylinder head on.

Do not wash off bolt coating.

Insert new cylinder head bolts and initially tighten so that they are free of play.

Tighten down the cylinder-head bolts in order 1... 10.

Tightening torque: 11 12 1 AZ .

Fig 7: Right Cylinder Head Bolts Tightening/Loosening Sequence (N63)

Courtesy of BMW OF NORTH AMERICA, INC.

Install and tighten down bolts (1) between cylinder head and timing case cover.

Tightening torque: 11 12 2 AZ .

Fig 8: Identifying Bolts At Front Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

Insert screw (1) of guide rail and tighten down.

Tightening torque: 11 31 3 AZ .

Fig 9: Identifying Screw Location

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, install camshafts. See 11 31 034 REMOVING AND INSTALLING/REPLACING RIGHT INLET CAMSHAFT (N63) or 11 31 038 REMOVING AND INSTALLING/RENEWING RIGHT EXHAUST CAMSHAFT (N63) .

Install INLET AND EXHAUST ADJUSTMENT UNIT ON LEFT SIDE .

Assemble engine.

FILL AND VENT COOLING SYSTEM .
