11 12 105 Removing and installing left cylinder head (N63)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

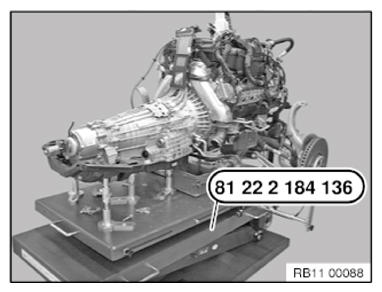

Special tools required:

Necessary preliminary tasks:

Necessary preliminary tasks:

Release screw (1).

NOTE: Guide rail is loose from cylinder head.
Fig 2: Identifying Screw Location
G10041656Courtesy of BMW OF NORTH AMERICA, INC.

Release bolts (1) at front from cylinder head.

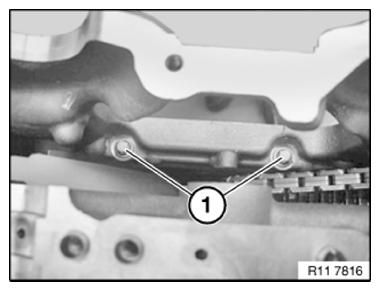

Fig 3: Identifying Bolts At Front Cylinder Head
G10041657Courtesy of BMW OF NORTH AMERICA, INC.

Release cylinder head bolts in sequence (10 to 1).

Remove all cylinder head bolts with washers.

NOTE: For purposes of clarity, the illustration shows the camshafts removed.
Fig 4: Left Cylinder Head Bolts Tightening/Loosening Sequence (N63)
G10041658Courtesy of BMW OF NORTH AMERICA, INC.

Clean sealing faces of cylinder head and engine block; if necessary, remove gasket debris compound with special tool 11 4 470 . Make sure no gasket remnants drop into oil and cooling channels.

IMPORTANT: Risk of cracking!
Threaded bores in engine block must be free of dirt and oil

Check CYLINDER HEAD  for leaks.

Check CYLINDER HEAD SEALING FACE  for surface evenness.

Coat joint between engine block and timing case cover with DREI BOND 1209 2.1 .

NOTE: Illustration shows an N62 engine by way of example.

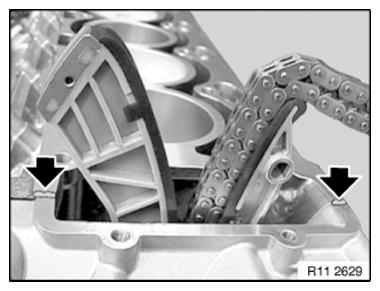

Fig 5: Identifying Sealing Joint Between Engine Block And Timing Case Cover
G10041659Courtesy of BMW OF NORTH AMERICA, INC.

Check fitting sleeves (1) for damage and correct installation position.

Installation note:

Renew cylinder head gasket (2).

Fit new cylinder head gasket (2).

NOTE: Illustration corresponds to cylinders 1-4.

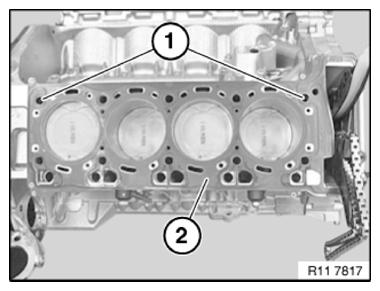

Fig 6: Identifying Cylinder Head Gasket And Fitting Sleeves
G10041660Courtesy of BMW OF NORTH AMERICA, INC.

Put the cylinder head on.

Do not wash off bolt coating.

Installation note:

Fit new cylinder head screws.

Insert new cylinder head bolts and initially tighten so that they are free of play.

Tighten down cylinder head bolts in sequence 1 - 10.

Tightening torque 11 12 1AZ .

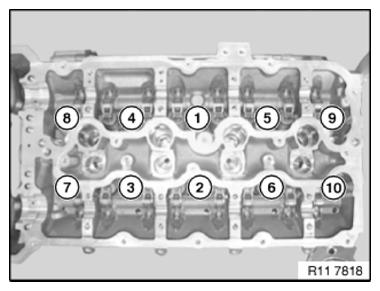

Fig 7: Left Cylinder Head Bolts Tightening/Loosening Sequence (N63)
G10041661Courtesy of BMW OF NORTH AMERICA, INC.

Install and tighten down bolts (1) between cylinder head and timing case cover.

Tightening torque 11 12 2AZ .

Fig 8: Identifying Bolts At Front Cylinder Head
G10041662Courtesy of BMW OF NORTH AMERICA, INC.

Insert screw (1) of guide rail and tighten down.

Tightening torque 11 31 3AZ .

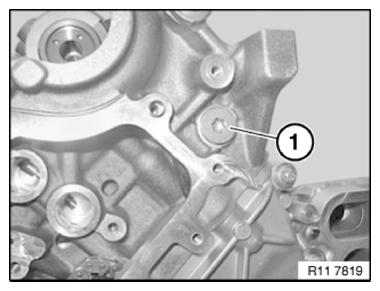

Fig 9: Identifying Screw Location
G10041663Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, install camshafts. See 11 31 036 REMOVING AND INSTALLING/REPLACING LEFT EXHAUST CAMSHAFT (N63) and 11 31 032 REMOVING AND INSTALLING/REPLACING LEFT INLET CAMSHAFT (N63) .

Install left INLET AND EXHAUST ADJUSTMENT UNITS .

Assemble engine.

FILL AND VENT COOLING SYSTEM
