11 12 719 Resurfacing cylinder head lower face (N55)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove CYLINDER HEAD .
Remove EXHAUST CAMSHAFT .
Remove INTERMEDIATE LEVER on intake side.

Check evenness of cylinder head lower faces with a standard straightedge (1).

NOTE: Max. deviation from flatness (longitudinal) 0.10 mm

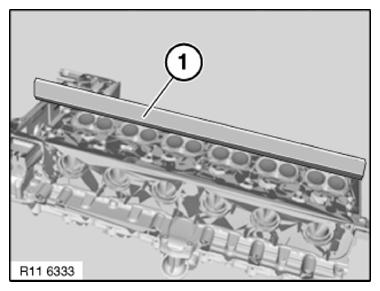

Fig 1: Checking Evenness Of Cylinder Head Lower Faces (Longitudinal)

Courtesy of BMW OF NORTH AMERICA, INC.

Check evenness of cylinder head lower faces with a standard straightedge (1).

NOTE: Max. deviation from flatness (transverse) 0.05 mm

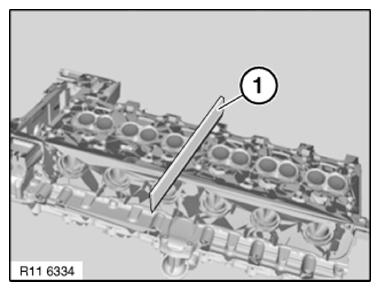

Fig 2: Checking Evenness Of Cylinder Head Lower Faces (Transverse)

Courtesy of BMW OF NORTH AMERICA, INC.

Check cylinder head for WATERTIGHTNESS .

Assemble engine.
