11 37 010 Removing and installing/replacing intermediate levers (N55)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

WARNING: Risk of injury in event of incorrect use.

IMPORTANT: Improper handling. Risk of damage!

IMPORTANT: Aluminum screws/bolts must be replaced each time they are released .
Aluminum screws/bolts are permitted with and without color coding (blue).
For reliable identification:
Aluminum screws/bolts are not magnetic .
Jointing torque and angle of rotation must be observed without fail (risk of damage) .

Necessary preliminary tasks:

Remove CYLINDER HEAD COVER .
Remove wiper console (E70/E71).
Remove ALL IGNITION COILS AND INJECTOR SHAFTS .

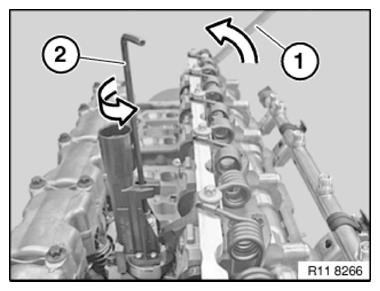

Slowly adjust eccentric shaft in direction of arrow to minimum stroke via the servomotor with a 4-mm hexagon socket wrench (2) and an open-end spanner (1).

IMPORTANT: Secure eccentric shaft with open-end spanner (1) (risk of return stroke).

Fig 1: Securing Eccentric Shaft Using Open-End Spanner

Courtesy of BMW OF NORTH AMERICA, INC.

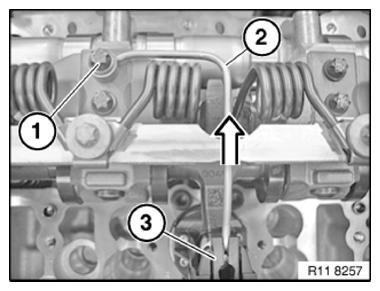

Release bolt (1) on the oil spray nozzle.

Tightening torque: 11 37 4AZ .

Unclip oil spray nozzle (2) from the bracket on the actuator drive (3) in direction of arrow.

Fig 2: Removing Bolt On Oil Spray Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.

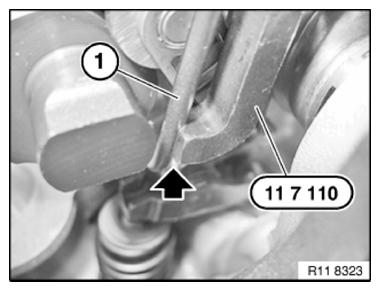

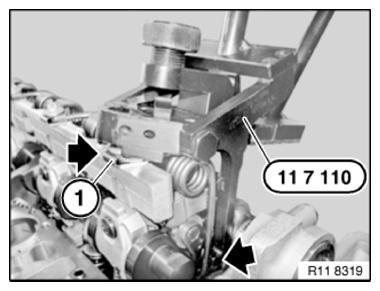

Position special tool 11 7 110 on return spring (1) (see arrows in illustration).

Fig 3: Locating Return Spring

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Risk of injury in event of incorrect use.

IMPORTANT: Improper handling. Risk of damage!

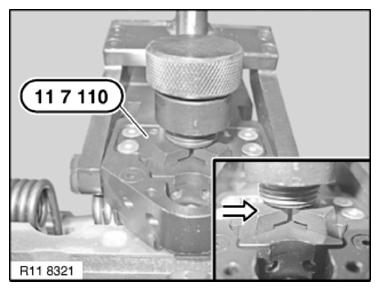

Place special tool 11 7 110 flat on cylinder head.

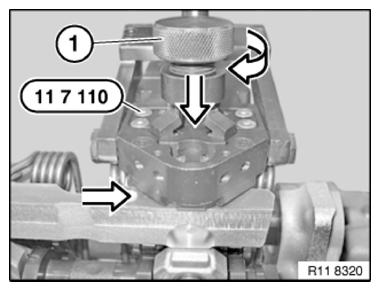

Turn knurled screw (1) in direction of arrow until both clamping levers secure return spring in gate.

Fig 4: Turning Knurled Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Return spring is correctly preloaded when both clamping levers are parallel to guide block.

Fig 5: Placing Special Tool 11 7 110 Flat On Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!

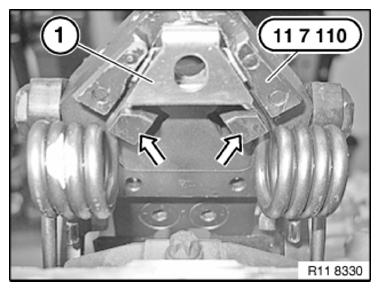

Left and right return springs (1) must be positioned in lateral guide of special tool 11 7 110 .

Fig 6: Locating Return Springs (Left And Right)

Courtesy of BMW OF NORTH AMERICA, INC.

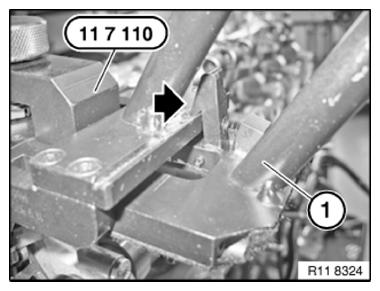

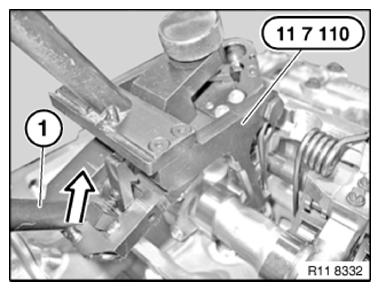

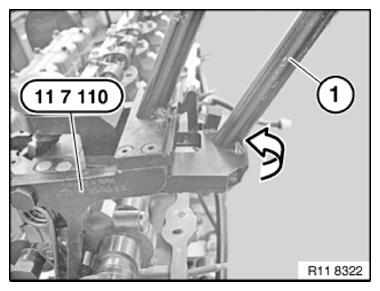

Preload return spring with lever (1) on special tool 11 7 110 in direction of arrow.

Fig 7: Installing Return Spring With Lever On Special Tool 11 7 110

Courtesy of BMW OF NORTH AMERICA, INC.

Lock special tool 11 7 110 with latching hook on lever (1).

IMPORTANT: Screw connection on return spring can first be released with secured special tool 11 7 110 .

Fig 8: Locating Latching Hook On Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Fig 9: Screwing Connection On Return Spring

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Risk of injury in event of incorrect use.
Lever (1) is preloaded.

IMPORTANT: Improper handling. Risk of damage!

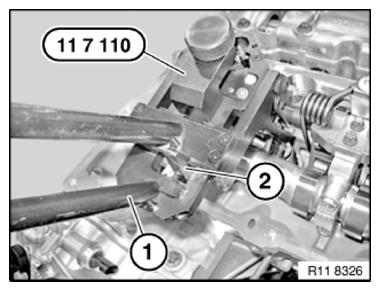

Secure lever (1)

Press back latching hook (2).

Return spring tension can now be released.

Fig 10: Pressing Back Latching Hook

Courtesy of BMW OF NORTH AMERICA, INC.

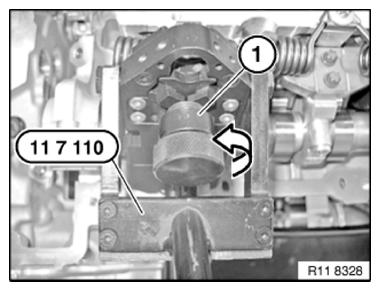

Release knurled screw (1) on special tool 11 7 110 in direction of arrow.

Fig 11: Releasing Knurled Screw

Courtesy of BMW OF NORTH AMERICA, INC.

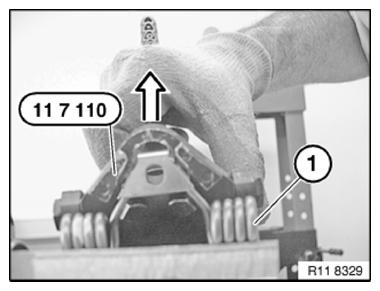

Release special tool 11 7 110 in direction of arrow from return spring (1).

Fig 12: Releasing Special Tool 11 7 110 From Return Spring

Courtesy of BMW OF NORTH AMERICA, INC.

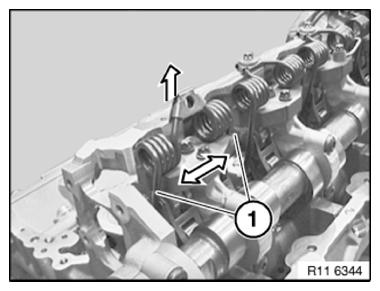

Press return spring (1) apart.

Remove return spring (1) upward.

Fig 13: Removing Return Spring

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Uniform distribution must not be changed.

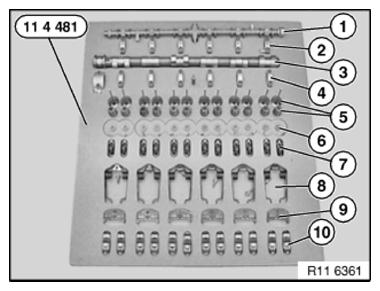

Place all components in clean and orderly condition in special tool 11 4 481 .

All components must be reinstalled in the same positions in an engine which has already been in use.

Fig 14: Identifying Special Tools Components

Courtesy of BMW OF NORTH AMERICA, INC.

Eccentric shaft with bearing
Bearing caps of eccentric shaft (set out in order)
Intake camshaft
Bearing caps of intake camshaft (set out in order)
Intake valves with valve springs
Valve heads and valve keys
Rocker arms with HVCA elements (set out in order)
Return springs.
Gates (set out in order)
Intermediate levers (set out in order)

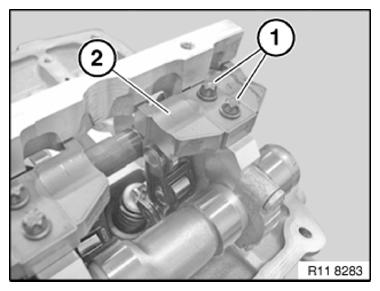

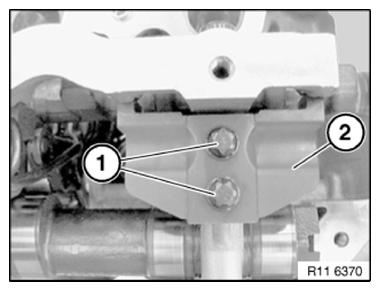

Release screws (1) on gate (2).

Tightening torque 11 37 1AZ .

Place all gates (2) in neat order in special tool 11 4 481 .

Installation note:

Mixing up the gates (2) will cause the engine to suffer idle-speed fluctuations.

This will result in maladjustment of uniform distribution.

Fig 15: Identifying Screws On Gate

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

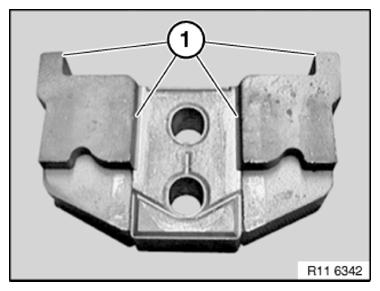

All contact surfaces (1) of gates must be clean and free from oil and grease. If necessary, clean contact surfaces (1).

Fig 16: Identifying Gates Contact Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

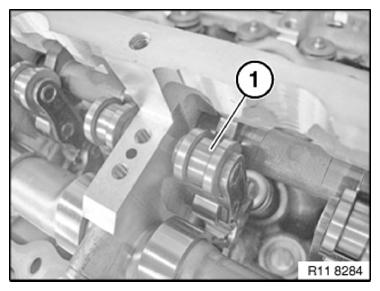

Lift out intermediate levers (1).

Place all intermediate levers (1) in neat order in special tool 11 4 481 .

Installation note:

Mixing up the intermediate levers (1) will cause the engine to suffer idle-speed fluctuations.

Installation note:

All contact surfaces must be clean and free of oil and grease. If necessary, clean contact surfaces.

Fig 17: Identifying Intermediate Levers

Courtesy of BMW OF NORTH AMERICA, INC.

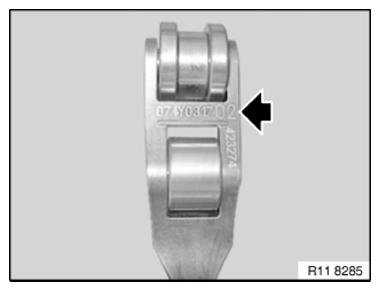

All intermediate levers are classified.

All intermediate levers must be reinstalled in the same positions in an engine which has already been in use.

Intermediate levers are classified from 1 to 5.

Fig 18: Locating Intermediate Levers Codes

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Before installing intermediate levers (1), make sure rocker arms are correctly positioned.
Risk of damage!

Fig 19: Identifying Intermediate Levers On Rocker Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Install intermediate levers (1).

Fig 20: Identifying Intermediate Levers

Courtesy of BMW OF NORTH AMERICA, INC.

Fit gate (2) cleanly into recess.

Tighten screws (1) hand-tight.

Check that intermediate levers are in correct installation position.

Release screws (1) by a 1/4 turn.

Fig 21: Identifying Gate With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

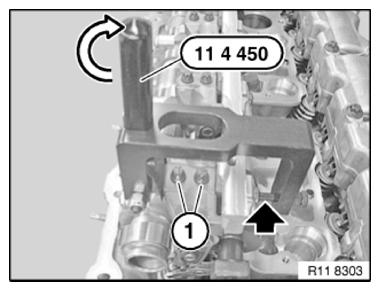

Secure special tool 11 4 450 on screw connection (1) of eccentric shaft and set adjusting screw on special tool 11 4 450 if necessary.

Turn eccentric lever on special tool 11 4 450 in direction of arrow.

Gate is now preloaded.

Insert screws (1) of gates.

Tightening torque 11 37 1AZ .

Installation note:

At cylinder no. 3, the gate can be preinstalled with one screw (internal) only.

Fig 22: Turning Eccentric Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Oil spray nozzle is fitted only after return spring has been installed.

Press return spring (1) apart.

Install return spring (1).

Fig 23: Installing Return Spring

Courtesy of BMW OF NORTH AMERICA, INC.

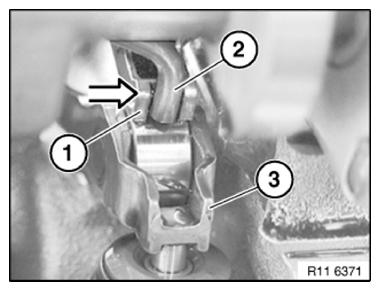

Install return spring (2) on gate.

Installation note:

Insert return spring (2) in intermediate lever (1) (see arrow in illustration).

Check that rocker arm (3) is in correct installation position.

Fig 24: Inserting Return Spring In Intermediate Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 11 7 110 on return spring.

Fig 25: Positioning Special Tool 11 7 110 On Return Spring

Courtesy of BMW OF NORTH AMERICA, INC.

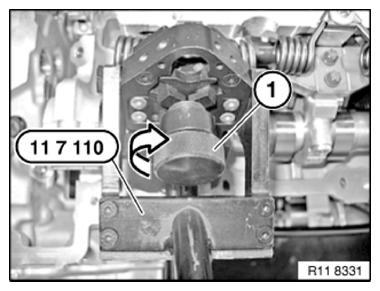

Clamp return spring with knurled screw (1) in direction of arrow.

Fig 26: Clamping Return Spring With Knurled Screw

Courtesy of BMW OF NORTH AMERICA, INC.

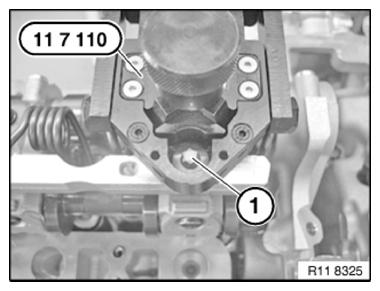

Return spring (1) is positioned correctly when latching hooks surround return spring (1).

Fig 27: Positioning Return Spring

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Risk of injury in event of incorrect use.

IMPORTANT: Improper handling. Risk of damage!
Check return spring on intermediate lever to ensure correct installation position.

Press special tool 11 7 110 to stop in direction of arrow.

Fig 28: Pressing Special Tool 11 7 110 To Stop

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Pay attention to thread on cylinder head. Risk of damage!

Tighten bolt (1).

Tightening torque 11 37 2AZ .

Fig 29: Identifying Cylinder Head Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Retract oil spray nozzle (2) on actuator drive (3).

Engage bolt (1) and release back to 90°.

For exact positioning of the oil spray nozzle (2) audibly clip it in at the top.

Tightening torque 11 37 4AZ .

Fig 30: Releasing Oil Spray Nozzle From Actuator Drive

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
