11 12 729 Checking cylinder head for water leaks (N55)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Pressure-test cylinder head to max. 3 bar.
Heat cylinder head to 60°.
Check for bubble formation in a water bath.

Necessary preliminary tasks:

Remove CYLINDER HEAD .
Disassemble cylinder head. See 11 31 025 REMOVING AND INSTALLING/REPLACING INTAKE CAMSHAFT (N55) , 11 31 028 REMOVING AND INSTALLING/REPLACING EXHAUST CAMSHAFT (N55) and 11 34 552 REMOVING AND INSTALLING/REPLACING ALL VALVES (N55) .

Fit special tool 11 7 190 .

Installation note:

Secure special tool to max. 15 Nm.

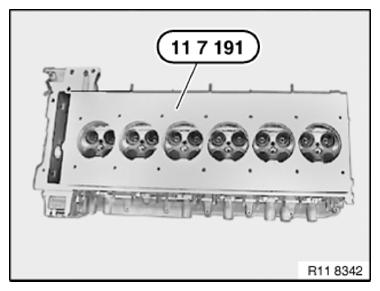

Fig 1: Identifying Special Tool 11 7 190

G10041623

Courtesy of BMW OF NORTH AMERICA, INC.

Fit special tool 11 4 342 with screws (1). Screw in knurled screw in direction of arrow.

Sealing flange must rest flat.

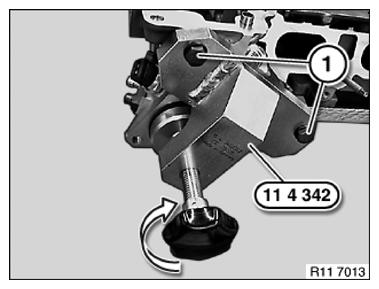

Fig 2: Identifying Special Tool 11 4 342

G10041624

Courtesy of BMW OF NORTH AMERICA, INC.

Secure special tool 11 4 344 with bolts (1).

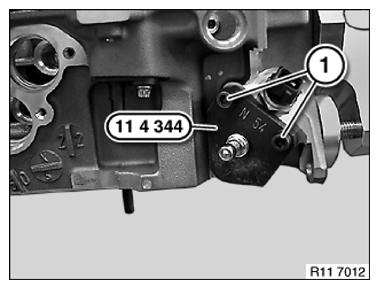

Fig 3: Identifying Special Tool 11 4 344

G10041625

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Compressed air at valve max. 3 bar .
Heat cylinder head to 60°.
Check for bubble formation in a water bath.

Assemble engine.
