11 12 719 Grinding cylinder head sealing surface (N63)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove cylinder head.

Cylinder head disassembled:

Check evenness of cylinder head lower face with a standard straightedge (1).

NOTE: Maximum deviation from flatness: longitudinal 0.10 mm.

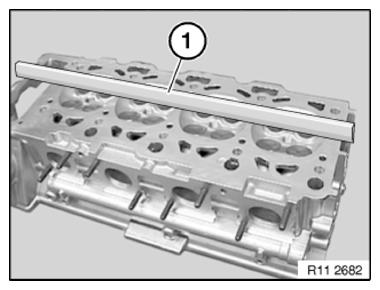

Fig 1: Checking Evenness Of Cylinder Head Lower Face (Longitudinal)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Maximum deviation from flatness: transversal 0.05 mm.

Machining limit: See 11 12 CYLINDER HEAD WITH VALVE SEAT COVER or 11 12 CYLINDER HEAD WITH LID .

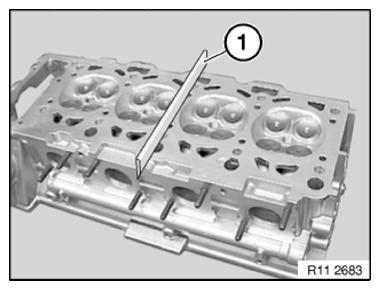

Fig 2: Checking Evenness Of Cylinder Head Lower Face (Transversal)
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: A cylinder head gasket (+REP) 0.3 mm thicker than usual can be obtained for machined (resurfaced) cylinder heads.

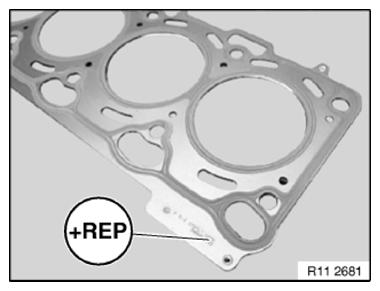

Fig 3: Identifying Cylinder Head Repair Gasket (+REP)

Courtesy of BMW OF NORTH AMERICA, INC.
