52 17 020 Removing and installing/replacing seat frame on left or right front seat (comfort)

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front seat. See 52 13 000 Removing And Installing Left Or Right Front Seat (Normal/Semi-Electric) .
Remove both rear panels on front seat backrest. See 52 14 198 Removing And Installing/Replacing Rear Panel On Left Or Right Front Seat Backrest (Normal/Electric) .
Remove outer cover. See 52 14 040 Removing And Installing/Replacing Outer Cover On Left Or Right Front Seat (Basic/Electric) .
E60 only: Remove actuating unit. See 61 31 203 REPLACING SEAT ADJUSTMENT SWITCH .
Remove inner cover on front seat. See 52 14 041 Removing And Installing Inner Cover On Left Or Right Front Seat (Normal/Electric) .
Remove adjustment unit for thigh support. See 52 16 023 Removing And Installing/Replacing Adjusting Unit For Thigh Support On Left Or Right Front Seat .
Remove backrest frame on front seat See 52 17 030 Removing And Installing/Replacing Backrest Frame On Left Or Right Front Seat (Comfort) .
If necessary, remove drive unit for active seat. See 52 14 020 Removing And Installing/Replacing Seat Frame On Left Or Right Front Seat (Normal/Electric) .

Remove wiring harness (1) from seat frame (2).

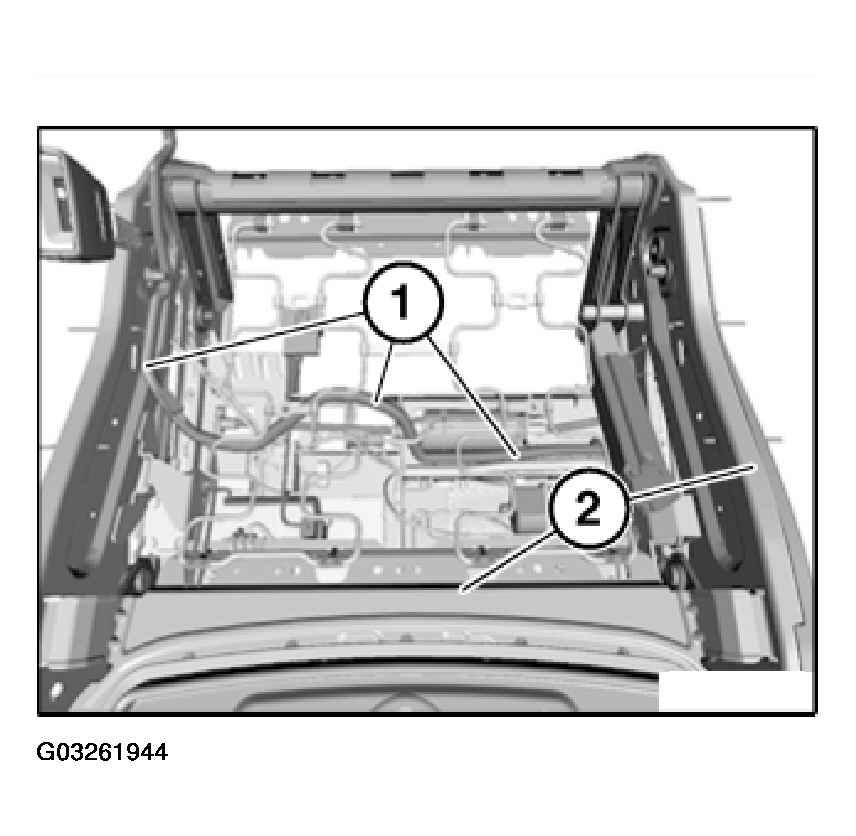

Fig 1: Removing Wiring Harness From Seat Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Release rivets (1) on left and right, remove fastening strips (2) on left and right.

Release screws (3).

Tightening torque, see 52 10 6AZ in SEATS - TIGHTENING TORQUES - 525I & 530I (M54) .

Remove seat frame.

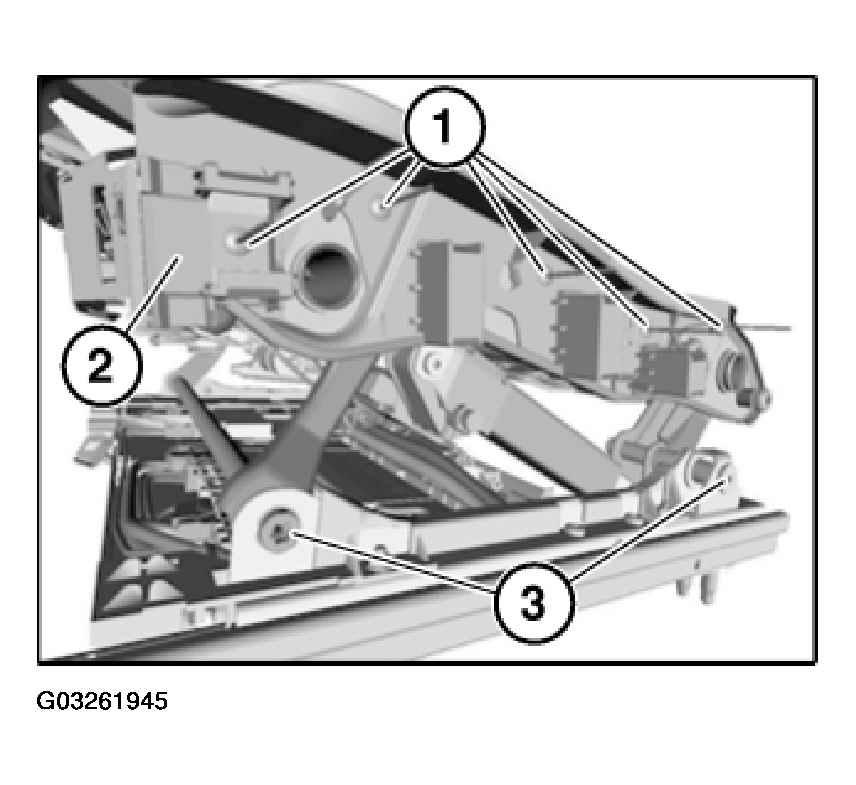

Fig 2: Removing Fastening Strips On Left And Right

Courtesy of BMW OF NORTH AMERICA, INC.

The new seat frame part contains all the drives.
