52 14 020 Removing and installing/replacing seat frame on left or right front seat (normal/electric)

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front seat. See 52 13 000 Removing And Installing Left Or Right Front Seat (Normal/Semi-Electric) .
Remove backrest frame. See 52 17 030 Removing And Installing/Replacing Backrest Frame On Left Or Right Front Seat (Comfort) .
Remove both seat rails on front seat. See Removing And Installing/Replacing Both Seat Rails On Left Or Right Front Seat (Normal/Electric) .
Remove seat cover for front seat. See 52 13 400 Replacing Seat Cover For Left Or Right Front Seat (Normal/Semi-Electric) .

Release fastening elements (1) on left and right.

Remove component (2) on left and right.

Remove complete seat wiring harness.

If necessary, remove drive for active seat.

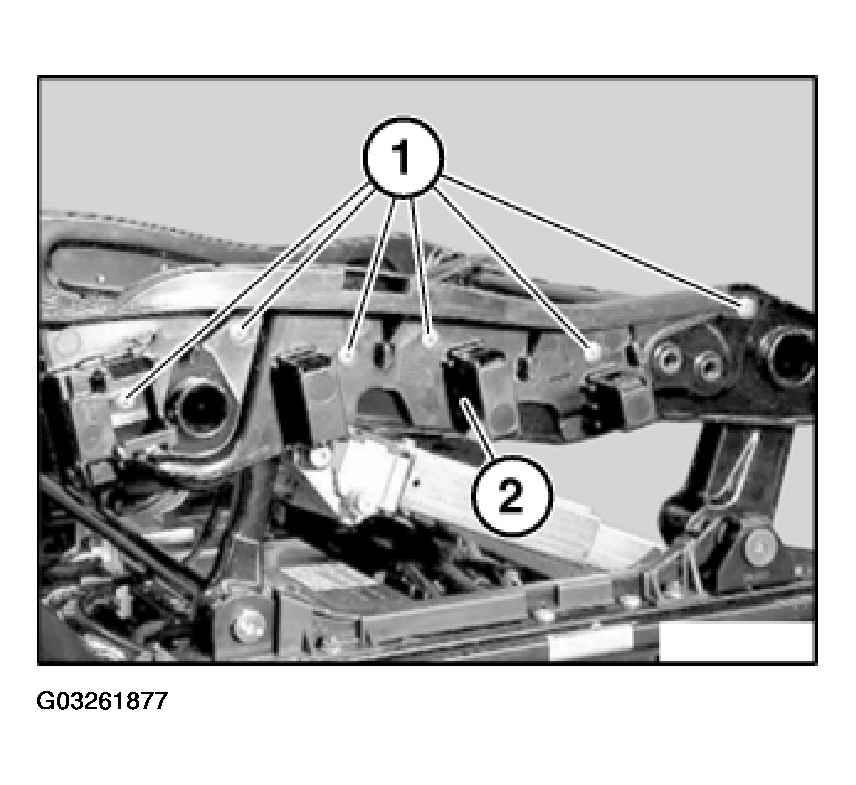

Fig 1: Removing Component On Left And Right

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The new seat frame part contains all the drives.
