52 14 041 Removing and installing inner cover on left or right front seat (normal/electric)

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front seat. See 52 13 000 Removing And Installing Left Or Right Front Seat (Normal/Semi-Electric) .

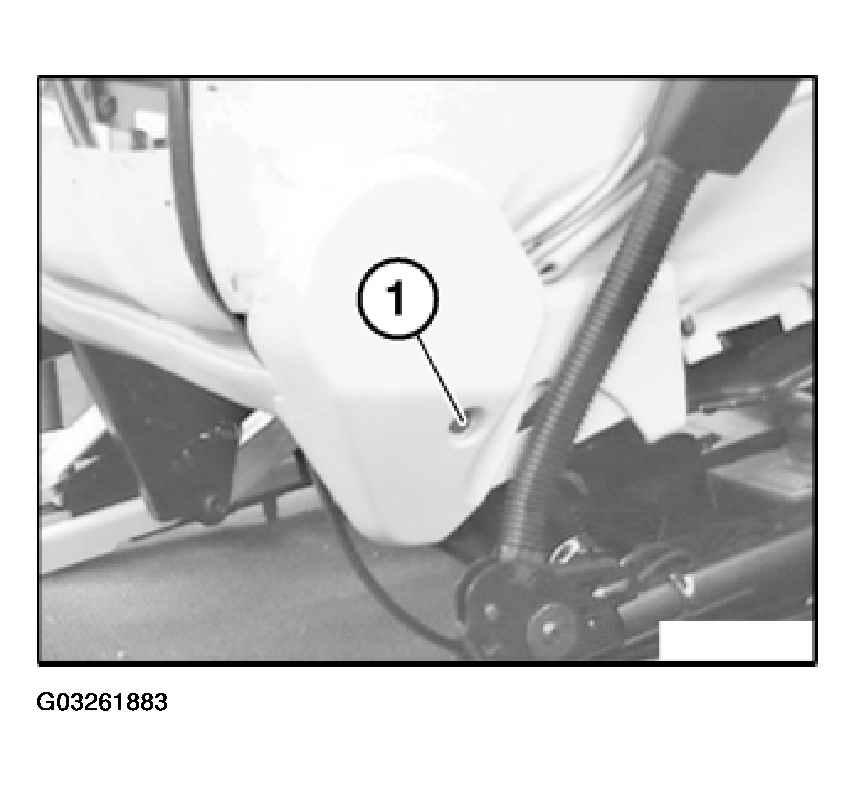

Unscrew bolt (1).

Fig 1: Identifying Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

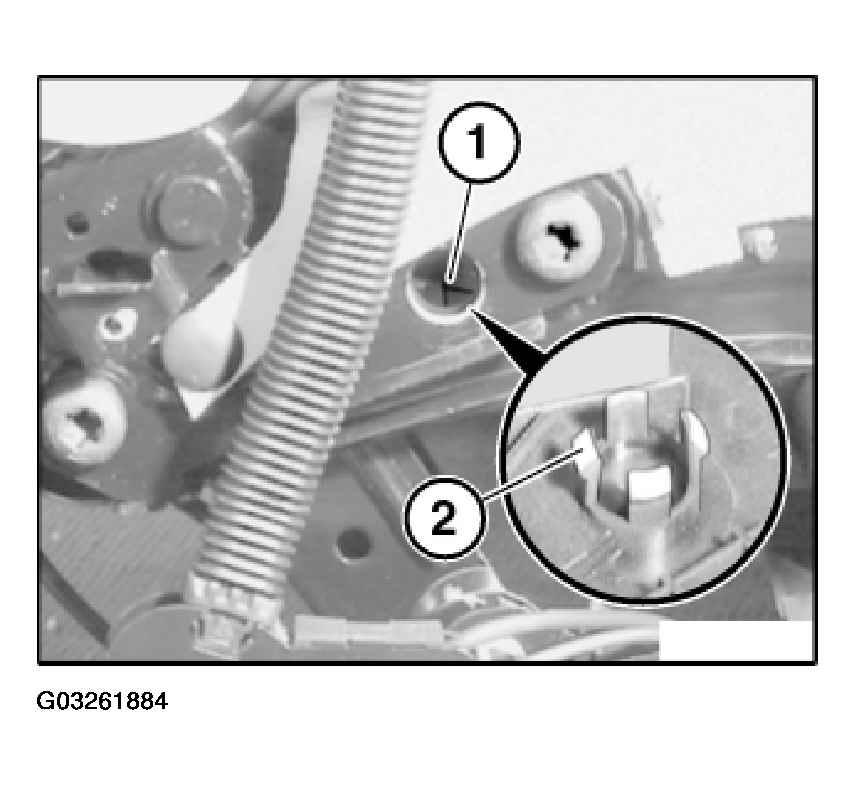

Cover is secured by guide (2) in hole (1).

Fig 2: Identifying Guide And Hole

Courtesy of BMW OF NORTH AMERICA, INC.
