52 16 023 Removing and installing/replacing adjusting unit for thigh support on left or right front seat
WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove front seat. See 52 13 000 Removing And Installing Left Or Right Front Seat (Normal/Semi-Electric) .
Move thigh support forwards as far as possible.

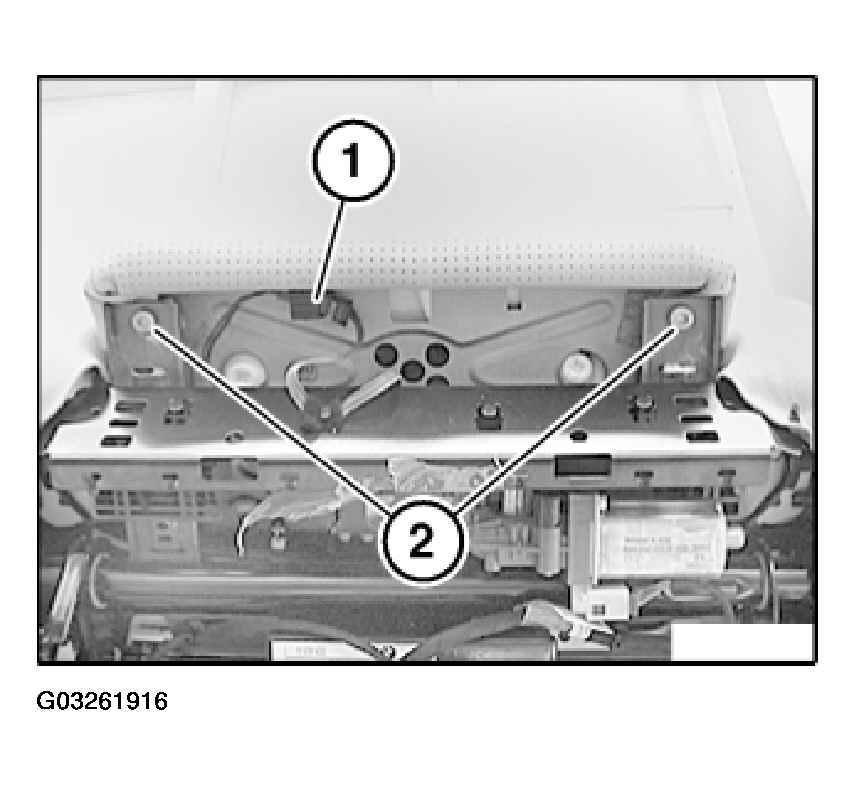

Unfasten plug connection (1) and disconnect.
Release screws (2).
Installation:
Insert screws (2) with Loctite.

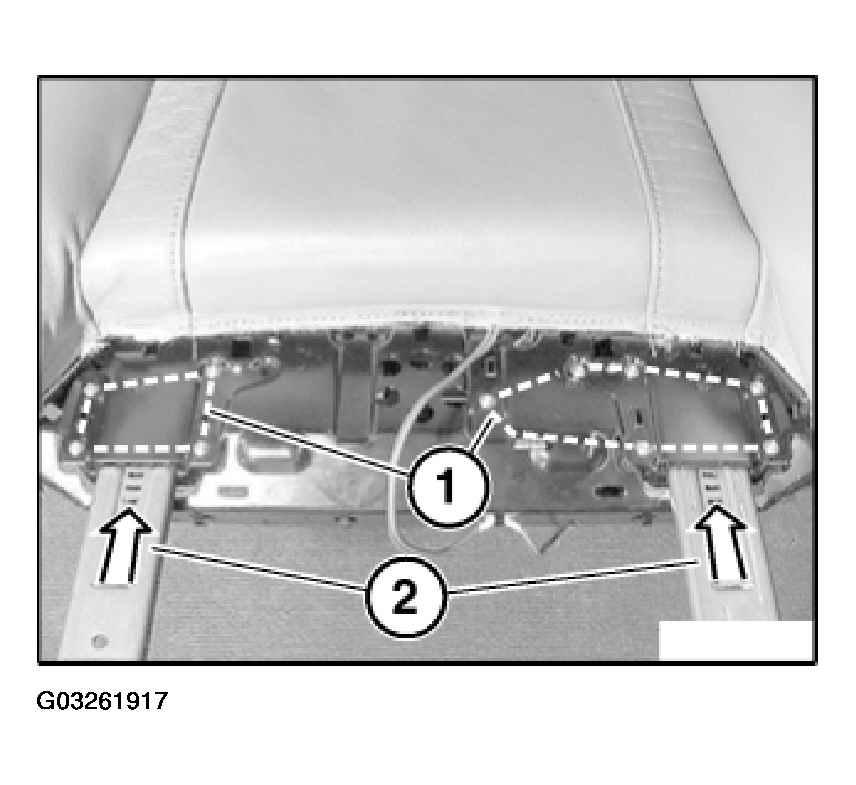

Release screws in areas (1).
Feed out adjusting unit (2) complete with drive in direction of arrow and remove.
