51 16 270 Removing and installing rear console at rear (long version)

Necessary preliminary tasks:

• Remove UPPER REAR CONSOLE TRIM
• Remove INFRARED TRIM
• Remove LOWER REAR CONSOLE TRIM
• Remove DRAWER
• Remove FRESH-AIR GRILLE FROM REAR CONSOLE

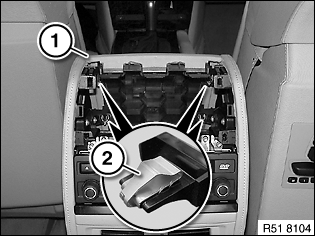

Unclip panel (2) towards front from retainers (1).

Fig 1: Identifying Panel And Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

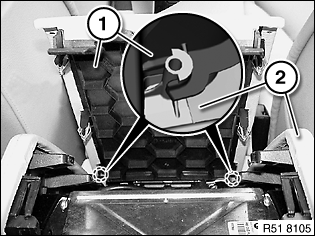

Tilt panel (1) forwards slightly and feed out of rear console (2).

Installation:

Make sure panel (1) is correctly seated on panel (2).

Fig 2: Identifying Panel And Rear Console

Courtesy of BMW OF NORTH AMERICA, INC.

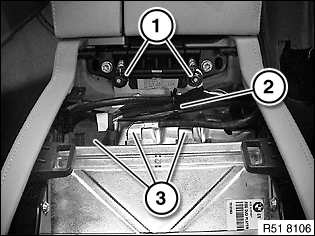

Unscrew nuts (1).

Release cable tie (2).

Disconnect plug connections (1) and feed cable out of rear console cable guides.

Fig 3: Identifying Cable Tie And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

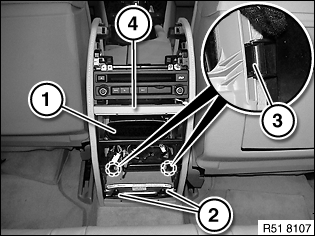

Remove air duct (1).

Unscrew nuts (2).

Feed out cable and remove rear console (4) towards top rear.

Installation:

Ensure guide (3) is correctly seated.

Fig 4: Identifying Air Duct, Nuts, Guide, And Rear Console

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove DVD PLAYER .
