51 16 268 Removing and installing lower rear console trim (long version)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Open drawer (1).

Reach into drawer opening (1) and press trim (2) towards rear out of retainers (3).

Disconnect all plug connections and remove trim (2).

Installation:

Retainers (3) and locators on rear console must not be damaged.

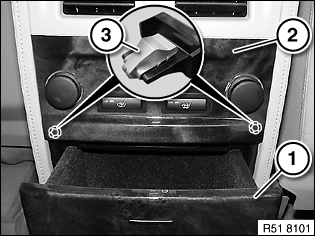

Fig 1: Identifying Drawer, Trim, And Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Modify AV CONNECTION SOCKET
Modify SEAT HEATING SWITCHES
Modify CIGARETTE LIGHTER INSERTS

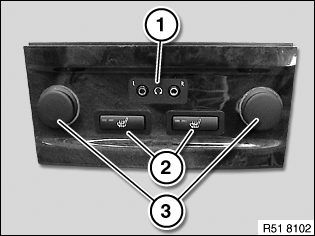

Fig 2: Identifying AV Connection Socket, Seat Heating Switches, and Cigarette Lighter Inserts

Courtesy of BMW OF NORTH AMERICA, INC.
