51 16 255 Removing and installing drawer in rear console (long version)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LOWER REAR CONSOLE TRIM

Release screws (1), open drawer (2) and feed out of rear console (3).

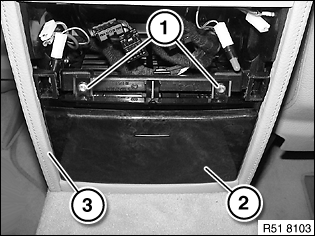

Fig 1: Identifying Rear Console, Drawer, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
