51 16 263 Removing and installing upper rear console trim (long version)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Insert special tool 00 9 340 between trim (1) and upper/side rear console.

Unclip trim (1) towards rear from retainers (2) and feed out.

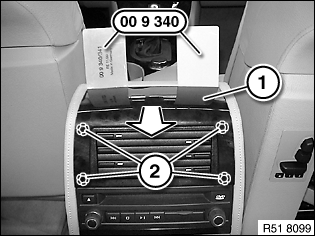

Fig 1: Using Special Tool 00 9 340 To Unclip Trim From Console

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clips (1) must not be missing or damaged.

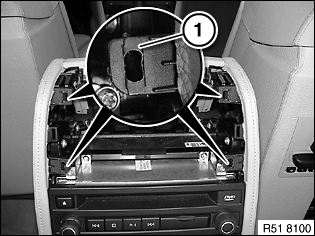

Fig 2: Identifying Clips

Courtesy of BMW OF NORTH AMERICA, INC.
