37 12 1090 Removing and installing rear left or right spring strut

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove REAR WHEEL
Remove luggage compartment wheel arch panel . See 51 47 151 REMOVING AND INSTALLING/REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM or 51 47 161 REMOVING AND INSTALLING/REPLACING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH PANEL .

Fold sound insulation upwards.

Unscrew nuts (1).

Tightening torque 33 52 1AZ .

Installation note:

Replace nuts.

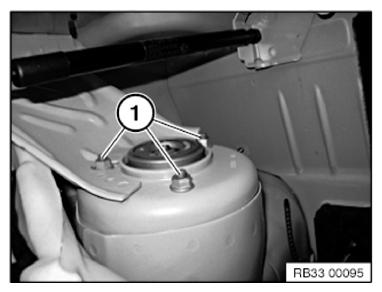

Fig 1: Identifying Nuts

G10061456

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Expose line up to the spring strut.

Fig 2: Identifying Plug Connection

G09915598

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Partially fold up wheel arch panel (2).

Installation note:

Replace nut if necessary.

Fig 3: Folding Wheel Arch Panel

G09915599

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 33 52 3AZ .

Remove spring strut from wheel carrier.

Installation note:

Replace screw.

Fig 4: Identifying Spring Strut Screw

G06889804

Courtesy of BMW OF NORTH AMERICA, INC.

Press wheel carrier downwards.

Remove spring strut towards rear/downwards.

Fig 5: Pressing Wheel Carrier

G09915601

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Before tightening screw connection, check that spring strut shock absorber pin is correctly positioned in wheel carrier.
