51 47 151 Removing and installing/replacing left luggage compartment wheel arch trim

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TOP TRIM FROM TAIL PANEL
Remove LUGGAGE COMPARTMENT STORAGE COMPARTMENT

Release expanding rivet (1).

Release screw (2) and remove lashing eye.

Remove luggage compartment wheel arch trim (3).

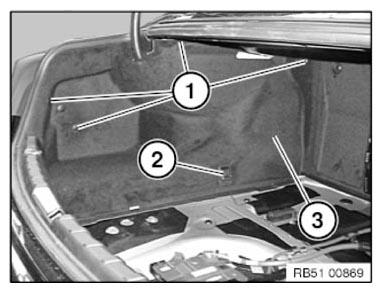

Fig 1: Identifying Luggage Compartment Wheel Arch Trim, Screw, And Expanding Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace expanding rivet if necessary.

Luggage compartment wheel arch panel (1) must be seated correctly under rubber seal (2).

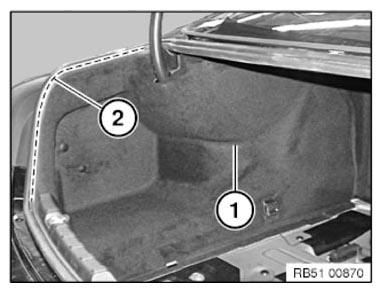

Fig 2: Identifying Luggage Compartment Wheel Arch Panel And Rubber Seal

Courtesy of BMW OF NORTH AMERICA, INC.
