51 47 161 Removing and installing/replacing right luggage compartment wheel arch panel

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Remove flap (1) and feed out cable behind for unlocking fuel filler flap from luggage compartment wheel arch panel.

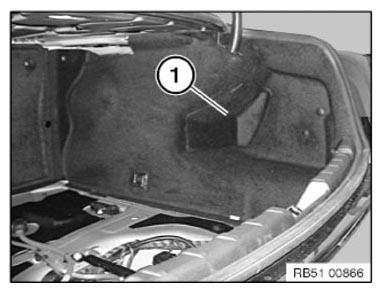

Fig 1: Identifying Flap
G10063060Courtesy of BMW OF NORTH AMERICA, INC.

The operation below is identical to:

Remove LUGGAGE COMPARTMENT WHEEL ARCH PANEL ON LEFT .
