37 12 090 Removing and installing rear left or right spring strut

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove REAR WHEEL
Remove WHEEL ARCH PANEL at rear right/left
Remove wheel arch panel at rear left/right . See 51 47 151 REMOVING AND INSTALLING/REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM or 51 47 161 REMOVING AND INSTALLING/REPLACING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH PANEL .

Unlock plug connection (1) and disconnect.

Unscrew nuts (2) SW13.

Installation note:

Replace nuts.

Tightening torque 33 52 1AZ .

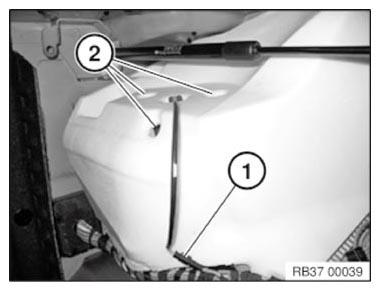

Fig 1: Identifying Plug Connection And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 33 52 3AZ .

Remove spring strut from wheel carrier.

Installation note:

Replace screw

Fig 2: Identifying Spring Strut Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Press wheel carrier (1) down.

First move spring strut (2) down slightly in direction of arrow in front of output shaft. Then, at top of wheel arch, swing down spring strut and remove.

Fig 3: Moving Spring Strut

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Before tightening screw connection, check that spring strut shock absorber pin is correctly positioned in wheel carrier.
