51 24 004 Adjusting rear lid lock

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM FOR REAR LID

Prerequisite:

Rear lid must be correctly adjusted to fit; if necessary, ADJUST REAR LID .

For ideal adjustment, refer to 41 00... BODY GAP DIMENSIONS .

Depending on version, press in or screw in bump stop (1) on tailgate on left and right completely.

NOTE: Operation is described in:

Removing and installing/replacing BUMP STOPS ON TAILGATE .

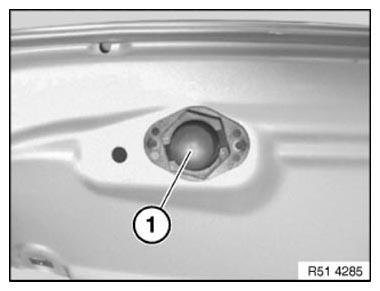

Fig 1: Identifying Bump Stop

G10062815

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out sealing cap (1).

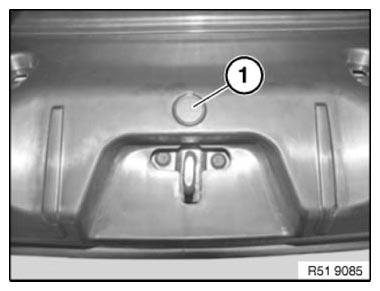

Fig 2: Identifying Sealing Cap

G10062816

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken screws (2) until striker (1) can still just be moved and centers itself.

IMPORTANT: Striker (1) must not brush against tailgate lock.

Fig 3: Identifying Striker And Screws

G10062817

Courtesy of BMW OF NORTH AMERICA, INC.

Close rear lid.

Check 41 00... BODY GAP DIMENSIONS . and locking comfort.

If necessary, repeat procedure.

NOTE: When the tailgate is closed, the striker must not touch or scrape against the tailgate lock. Look out for scratch marks.

Open tailgate.

Tighten down screws.

Tightening torque 51 24 3AZ .

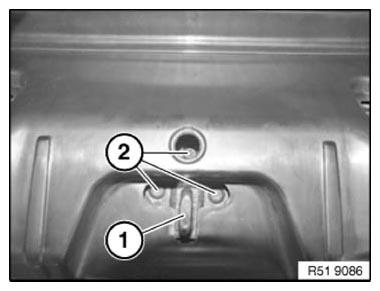

Fig 4: Identifying Striker And Screws

G10062818

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust bump stops (1) on tailgate.

NOTE: Operation is described in:

Removing and installing/replacing STOP PADS ON TAILGATE .

Fig 5: Identifying Bump Stop

G10062819

Courtesy of BMW OF NORTH AMERICA, INC.

Version with reversing camera:

After adjusting, check rear view camera and if necessary RECALIBRATE .
