51 49 000 Removing and installing or replacing trim for rear lid

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TAILGATE SWITCH
Remove LUGGAGE COMPARTMENT LIGHT (on tailgate)

Remove warning triangle (1) from bracket.

Release screws (2) and remove warning triangle holder.

Fig 1: Identifying Warning Triangle And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, detach Bowden cable from emergency release (2).

Loosen expanding rivet.

If necessary, feed out Bowden cable from emergency release (2).

Remove trim panel (2).

Installation note:

Replace faulty expanding rivets.

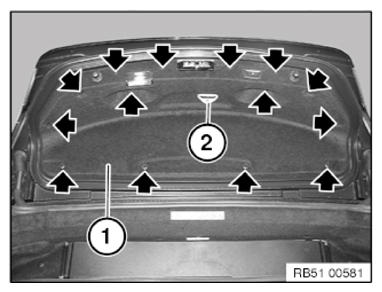

Fig 2: Removing/Installing Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
