51 12 825 Removing and installing/replacing guide for rear center bumper panel

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR BUMPER TRIM
If necessary, remove SENSOR FOR LANE CHANGE WARNING

If necessary, unlock plug connection (1) for comfort access system and disconnect.

Unscrew nuts (2).

Tightening torque 51 12 2AZ .

Remove guide (3).

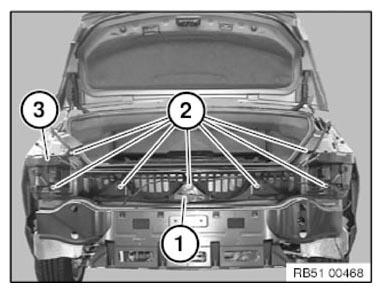

Fig 1: Identifying Guide, Nuts, And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Convert BUMPER AERIAL for Comfort Access
