61 35 975 Removing and installing/replacing bumper aerial for comfort access system
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove LICENSE PLATE LIGHTS
NOTE:

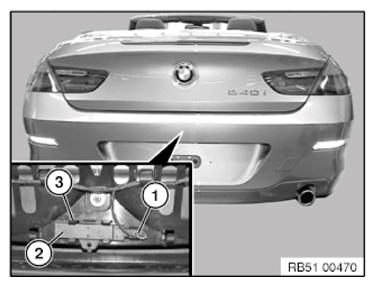

The aerial is removed through the number plate light opening in the bumper panel.
Disconnect plug connection (1).
Unlock and remove bumper aerial for comfort access system (2) from bracket (3).
Installation note:
Make sure bumper aerial for comfort access system (2) is correctly seated in designated holder (3).
