51 36 070 Removing and installing/replacing left or right rear side window

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The following notes form the basis for these repair instructions and must be adhered to at all times:

Notes on window bonding:
- SAFETY AT WORK

- INFORMATION ON VEHICLE PROTECTION

- MATERIALS FOR BONDING WINDOW

- NOTES ON WINDOW BONDING REPAIR KIT

- TOUCHING UP PAINTWORK DAMAGE
Refer to GENERAL PROCEDURE for dismantling/installation of affixed window glass

Cover rear side panels with protective covers.

NOTE: Removal is performed with ROLL OUT 2000 . Groove is worked with oscillating knife for replacement.

Necessary preliminary work:

Remove SIDE WINDOW TRIM STRIP
Remove BOTH TRIM PANELS FOR DOOR POST AT TOP (B-pillar)
Remove BOTH TRIM PANELS FOR REAR ROOF PILLAR (C-pillar)

Window construction:

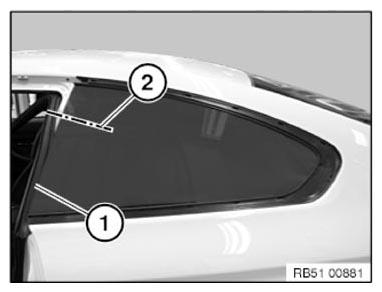

Pull out gasket (1) from side window.

IMPORTANT: Tape off body in area of piercing point with fabric adhesive tape (risk of damage).

Push wire starter from ROLL OUT 2000 at line (2) through adhesive bead.

Secure side window against falling out.

Fig 1: Pulling Out Gasket From Side Window And Pushing Wire Starter Through Adhesive Bead

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Fit straight blade with adjustable roller (Sourcing Reference: BMW Parts Department) on tool and set dimension (X).

X = 25 mm

NOTE: Sharpen knife blade before every use on a running machine (even with new knife blades).

Tape off side window and body flange all round with fabric adhesive tape (e.g. Tesa).

Fig 2: Identifying Special Tool Adjustment Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Secure outside of side window with adhesive tape.

Insert blade carefully between body and side window.

Guide web of blade parallel to side window. Cut through adhesive bead as close to body as possible.

Fig 3: Inserting Blade Between Body And Side Window

Courtesy of BMW OF NORTH AMERICA, INC.

Preparations for the installation of the side window:

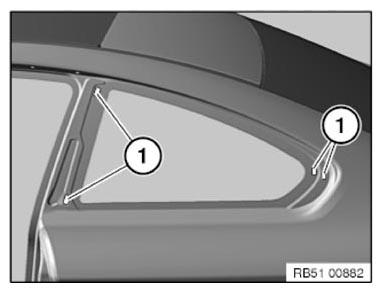

Dual locks to be used (1) 20 x 10 mm (BMW Parts Department sourcing reference).

Remove remnants of dual locks (1) on side window and body area and clean bonding surface.

Bond new dual locks (1) on marked body areas or side window frames.

Dual locks on side window must match these dual locks on body.

Fig 4: Identifying Dual Locks

Courtesy of BMW OF NORTH AMERICA, INC.

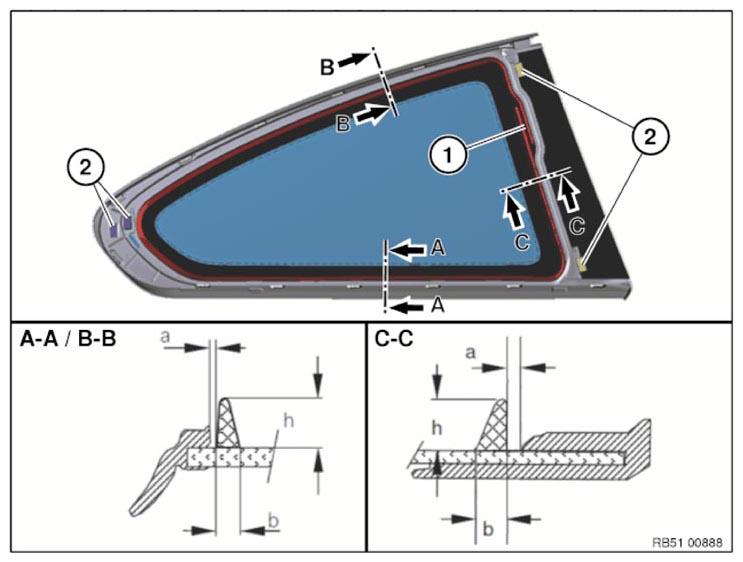

Overview for side window bonding:

Fig 5: Overview For Side Window Bonding

Courtesy of BMW OF NORTH AMERICA, INC.

Cut	A - A	B - B	C - C
a [mm] = Position adhesive bead	1 ±1/along TPE coating contour
b [mm] = Width adhesive bead	7 ±1
h [mm] = Height adhesive bead	10 ±1

Bead joint
positions of dual locks (marks are located on the sheet metal flange).

If necessary, remove faulty Dual Locks (2), clean bonding surface and stick on new Dual Locks (2).

Side window installation:

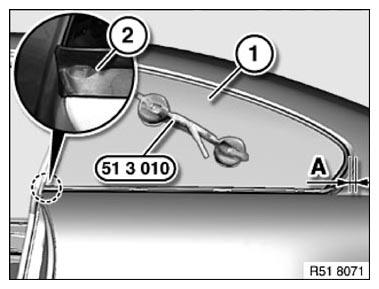

Firstly fit side window (1) with siphon (51 3 010) at bottom with PVC coating (2), then fold in at the top.

Adapt PVC coating (2) of side window (1) to side wall and adjust dimension "A" of side window (1) in relation to body.

A = 0 mm

Engage side window (1) in Dual Locks.

Fix side window (1) in position with yellow plastic adhesive tape (sourcing reference: BMW Parts Department).

Fig 6: Installing Side Window

Courtesy of BMW OF NORTH AMERICA, INC.
