51 36 056 Removing and installing/replacing trim strip on side window on rear left or right

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

Necessary preliminary tasks:

Remove TRIM STRIP FROM DRIP MOLDING

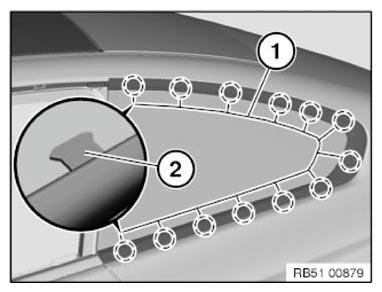

Starting at bottom, unclip trim strip (1) 00 9 325 from tabs (2) with special tool.

Installation note:

Tabs (2) on trim strip (1) must not be damaged or missing.

Fig 1: Identifying Tabs On Trim Strip

Courtesy of BMW OF NORTH AMERICA, INC.

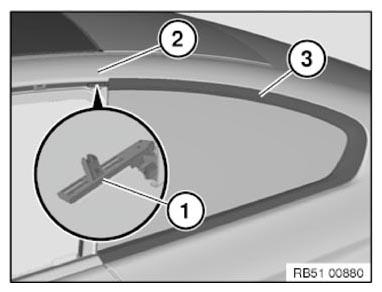

Release clip (1) on body (2) and trim strip (3).

Installation note:

Clip (1) must not be damaged or missing.

Fig 2: Identifying Clip

Courtesy of BMW OF NORTH AMERICA, INC.
