52 14 402 Replacing seat cover for driver's seat (normal/electric)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

52 0 050

Necessary preliminary tasks:

IMPORTANT: Risk of damage on sharp-edged seat mechanism.
Guide all cables carefully through seat and backrest mechanism.
Make sure cable is routed without kinks and tension.
Make sure plug connections are correctly locked.
Make sure connectors are correctly seated in latch mechanisms.

Fig 1: Identifying Soft-Top Bow And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

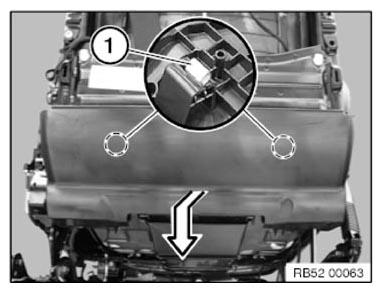

Unclip soft-top bow (1) on left and right and detach from backrest frame.

Move soft-top bow with backrest cover upwards.

Unclip cover in direction of arrow.

Installation note:

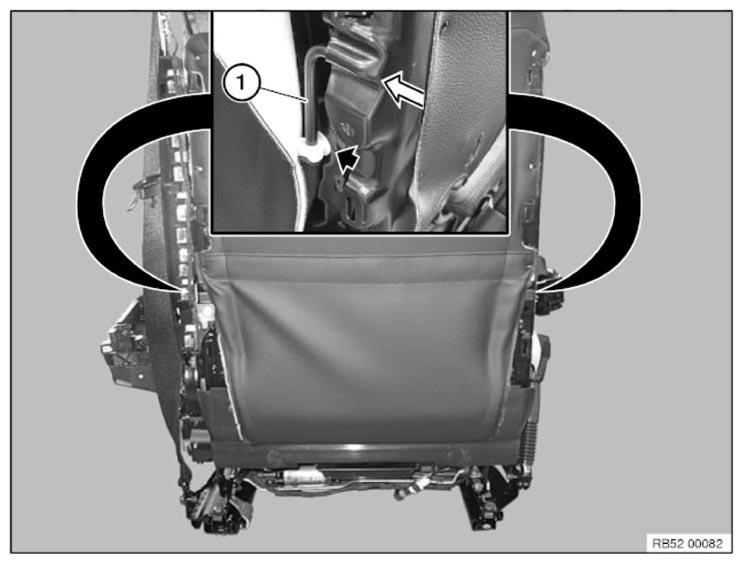

Remove metal clamps (1) left and right on the cover.

Bend up metal clamps and insert back into the cover.

Clip metal clamps (1) with cover into the slot on the seat mechanism.

Guide lug must not be broken.

Fig 2: Identifying Metal Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Renew faulty cover if necessary.

Disengage seat cover welt from seat frame.

Disengage seat cover from metal hooks.

Fig 3: Disengaging Seat Cover Welt From Seat Frame

Courtesy of BMW OF NORTH AMERICA, INC.

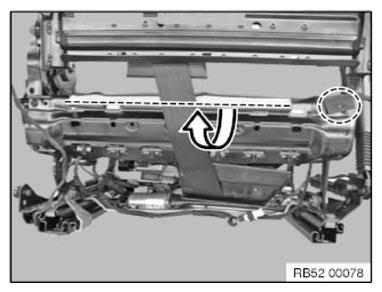

Lift seat cover welt from seat frame all the way around.

Fig 4: Lifting Seat Cover Welt From Seat Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Version with seat heating:

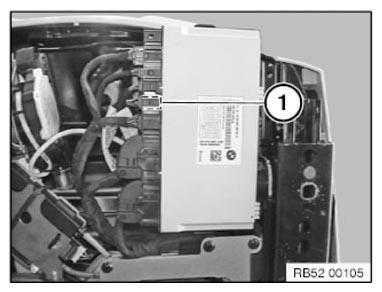

Unfasten plug connection (1) and disconnect.

Fig 5: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

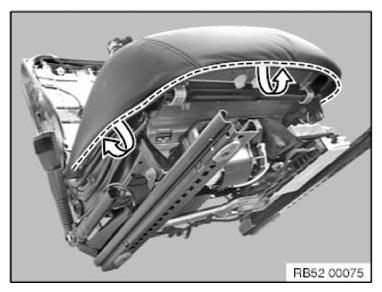

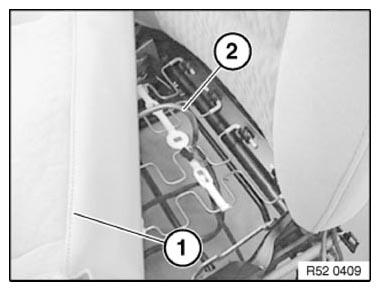

Pull seat cover (1) with padding forward a little and feed cable (2) out.

Remove seat cover (1) with padding towards front/top.

Fig 6: Identifying Seat Cover And Cable

Courtesy of BMW OF NORTH AMERICA, INC.

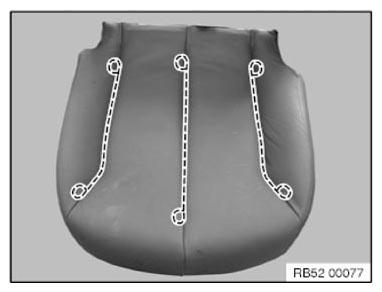

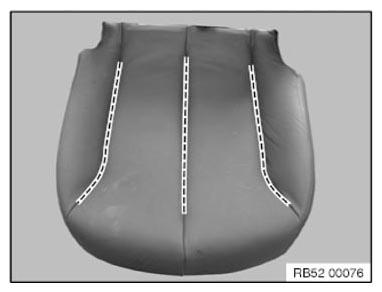

Release all clamps in marked area of trim wires.

Remove seat cover from upholstery.

IMPORTANT: Remove all remnants of clamps from seat cover and upholstery.

Fig 7: Locating Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

If applicable, pull trim wires out of seat cover.

Cut new seat cover to size and insert trim wires.

Fig 8: Inserting Trim Wires

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

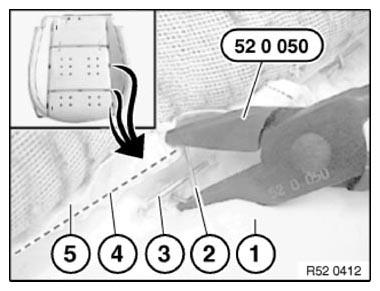

Bend new clamps (2) with special tool 52 0 050 .

Upholstery
Clamp
Trim wire in upholstery
Trim wire in cover
Seat cover

Fig 9: Bending New Clamps With Special Tool (52 0 050)
Courtesy of BMW OF NORTH AMERICA, INC.
