52 14 106 Removing and installing cover of inner backrest

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

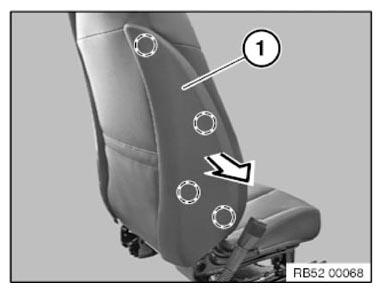

Unclip cover (1) in direction of arrow.

Fig 1: Removing Inner Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Pre-install metal clamps in trim.

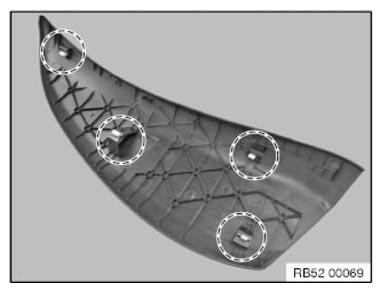

Fig 2: Identifying Metal Clamps

Courtesy of BMW OF NORTH AMERICA, INC.
