52 14 001 Removing and installing driver's seat

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: An airbag module and a pyrotechnical seat belt tensioner are installed in the front seat.
Improper handling can lead to triggering of the pyrotechnical seat belt tensioner or side airbag, resulting in injuries.

Installation note:

Powerlok screws must be replaced and must not be reused
Powerlok screws are mechanical screw locks with trilobular threads

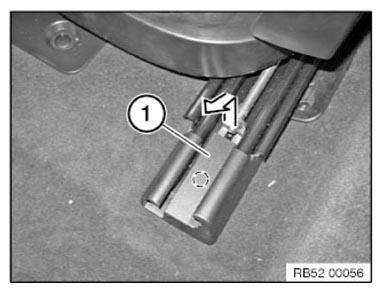

Carefully raise tab (1) and pull cover toward the front.

Fig 1: Identifying Tab

Courtesy of BMW OF NORTH AMERICA, INC.

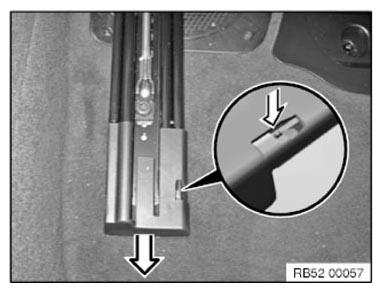

Unlock retaining lug and pull cover to the back.

Fig 2: Identifying Retaining Lug

Courtesy of BMW OF NORTH AMERICA, INC.

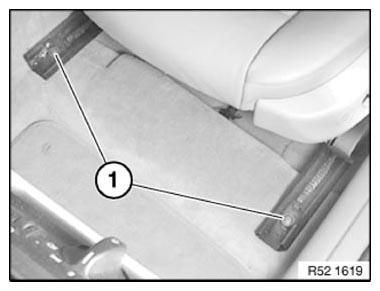

Move seat backwards.

Release and dispose of screws (1).

Fig 3: Identifying Screws At Front

Courtesy of BMW OF NORTH AMERICA, INC.

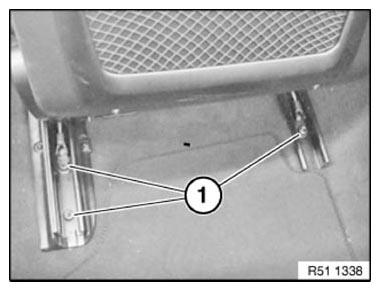

Move front seat forwards.

Release and dispose of screws (1).

Fig 4: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

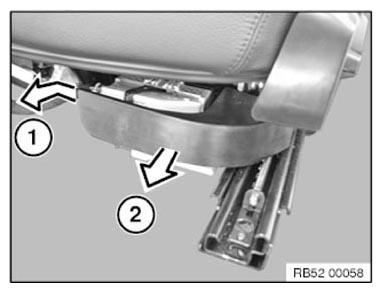

Unlock side cover in direction of arrow.
Pull cover towards front.

Installation note:

Make sure cover is correctly latched.

Fig 5: Removing Side Cover

Courtesy of BMW OF NORTH AMERICA, INC.

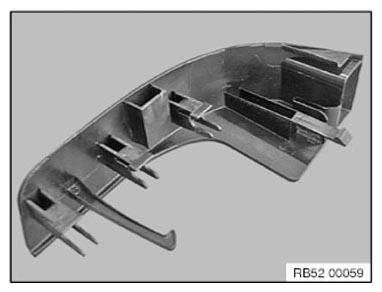

Installation note:

Retaining lugs must not be damaged.

Replace cover, if necessary.

Fig 6: Identifying Side Cover And Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

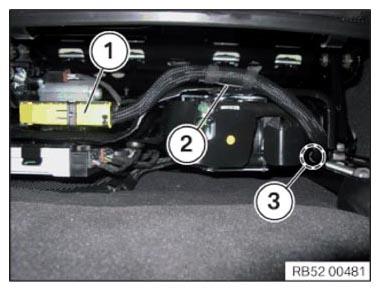

Unfasten plug connection (1) and disconnect.

Release wiring harness at clips (2 and 3).

IMPORTANT: Cover door sill with protective covers (risk of damage).

Lift out front seat.

Fig 7: Identifying Plug Connection And Wiring Harness Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Carpet must not get between seat rails and floor panel in area of attachment points (squeaking noises)
Insert all screws loose to avoid twisting
Tighten down all screws to specified torque
Tightening torque: 52 10 1AZ

WARNING: When carrying out further work on the front seat, it is absolutely imperative to observe the SAFETY REGULATIONS on handling airbag modules and pyrotechnical seat belt tensioners
Improper handling can lead to triggering of the pyrotechnical seat belt tensioner or side airbag, resulting in injuries.
