52 14 095 Replacing cover of backrest on outside

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Carefully unclip cover (1) in direction of arrow.

IMPORTANT: Risk of damage!
Cover (1) is secured to backrest frame by a retaining strap.

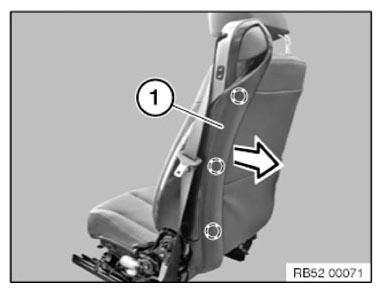

Fig 1: Unclipping Backrest Cover

G10063264

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip clamp (1) from backrest frame.

Installation note:

Ensure that the clamp (1) on the backrest frame and the clamp (2) on the cover are correctly and firmly seated.

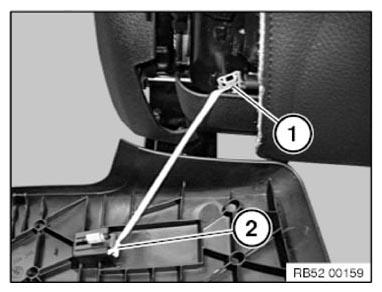

Fig 2: Identifying Clamps

G10063265

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clamps and retaining strap must not be damaged.

Replace clamps with retaining strap.

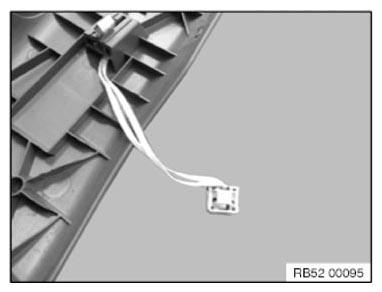

Fig 3: Identifying Retaining Strap

G10063266

Courtesy of BMW OF NORTH AMERICA, INC.

Pull release handle (1) and feed out cover (2).

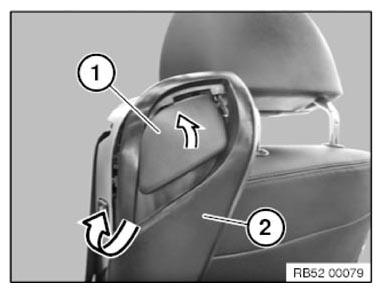

Fig 4: Removing Cover

G10063267

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace metal clamps after every disassembly and preassemble in trim.

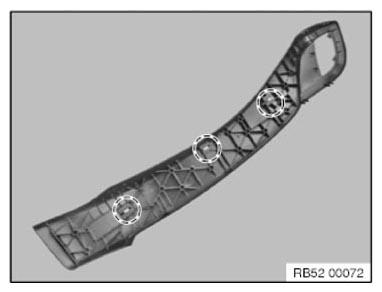

Fig 5: Identifying Metal Clamps
