51 37 265 Removing and installing/replacing inner window cavity cover strip for door window, rear left or right
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
Necessary preliminary tasks:
- Remove outer window cavity weather strip. See 51 37 240 REMOVING AND INSTALLING OR REPLACING OUTER WINDOW CAVITY COVER STRIP FOR DOOR WINDOW, REAR LEFT OR RIGHT .
- Remove rear side trim panel. See 51 43 002 REMOVING AND INSTALLING REAR LEFT OR RIGHT SIDE TRIM PANEL .

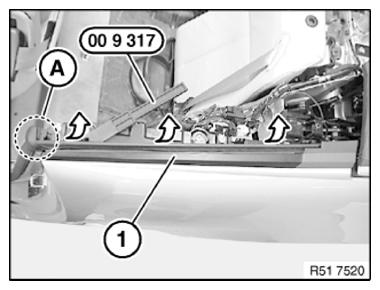

Lever out inner weather strip (1) with special tool 00 9 317 in direction of arrow.
Installation note:
Ensure weather strip (1) in area (A) is properly secured.

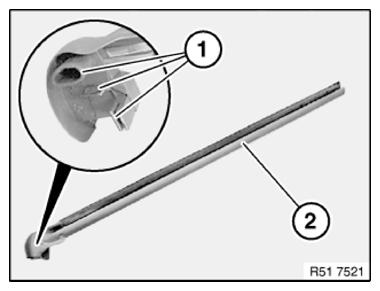

Installation note:
Guides (1) on weather strip (2) must not be damaged.
