51 37 240 Removing and installing or replacing outer window cavity cover strip for door window, rear left or right

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 311

Necessary preliminary tasks:

Open side window
Open soft top
Open soft top compartment lid.

Detach edge protection (1).

Raise the latch mechanism (2) on the corner of the weather strip in direction of arrow.

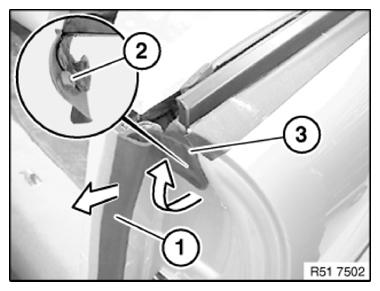

Fig 1: Removing Edge Protection

G10046433

Courtesy of BMW OF NORTH AMERICA, INC.

Release cover (1) from clips (2).

Installation note:

Always replace clips (2).

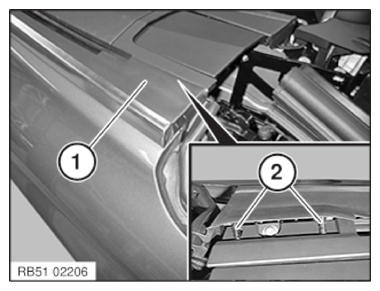

Fig 2: Identifying Cover From Clips

G10046434

Courtesy of BMW OF NORTH AMERICA, INC.

Attach adhesive tape (1) below window cavity cover strip (2) (paintwork damage).

Using special tool 00 9 311 (beginning at front and proceeding to rear), lever out window cavity cover strip (2).

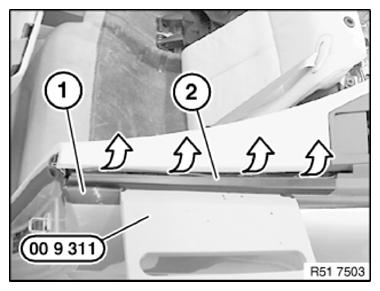

Fig 3: Attaching Adhesive Tape

G10046435

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The following parts of the weather strip must not be damaged:

2 Guide

3 Catch

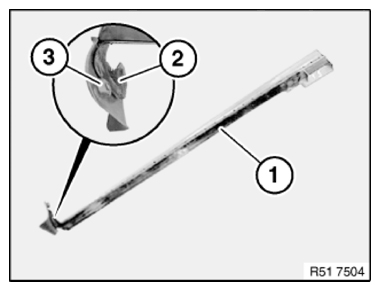

Fig 4: Identifying Guide And Catch

G10046436

Courtesy of BMW OF NORTH AMERICA, INC.
