51 16 273 Removing and installing/replacing fastener for center armrest
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).
Necessary preliminary tasks:
- Remove center armrest cover. See 51 16 167 REMOVING AND INSTALLING (REPLACING) CENTER ARMREST COVER .

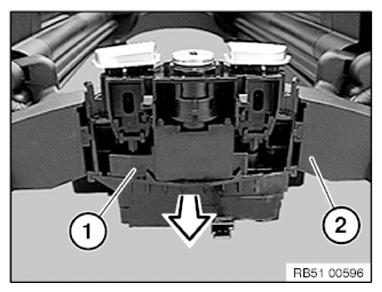

Pull the closure for the center armrest (1) including actuator drive forward and out of the center armrest (2).
Replacement
Operations correspond to:
Removing and installing/replacing lock cylinder in center armrest. See 51 16 190 REMOVING AND INSTALLING/REPLACING LOCK CYLINDER IN CENTER ARMREST .
