51 16 190 Removing and installing/replacing lock cylinder in center armrest

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Open storage compartment, if necessary.

Lever out and remove the closure cover (1) with special tool 00 9 325 .

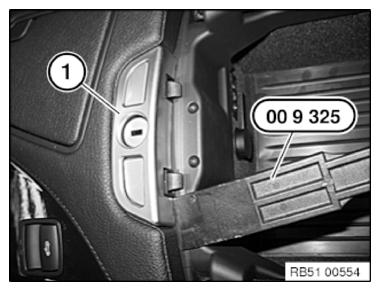

Fig 1: Identifying Special Tool 00 9 325

Courtesy of BMW OF NORTH AMERICA, INC.

Insert key (1) in lock cylinder (2).

Lever out lock barrel (2) with screwdriver (3) upwards.

Fig 2: Removing Lock Barrel

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Assemble new lock barrel according to the encoding. See 51 16 992 DISASSEMBLING AND ASSEMBLING LOCK BARREL (LOCK BARREL REMOVED) .
