51 16 167 Removing and installing (replacing) center armrest cover

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks:

Remove rear center console trim. See 51 16 163 REMOVING AND INSTALLING/REPLACING REAR CENTER CONSOLE COVER .
Remove both side covers on center console. See 51 16 227 REMOVING AND INSTALLING/REPLACING TRIM ON CENTER CONSOLE AT SIDE LEFT OR RIGHT .

Open storage compartment, if necessary.

Lever out and remove the closure cover (1) with special tool 00 9 325 .

Fig 1: Identifying Special Tool 00 9 325

Courtesy of BMW OF NORTH AMERICA, INC.

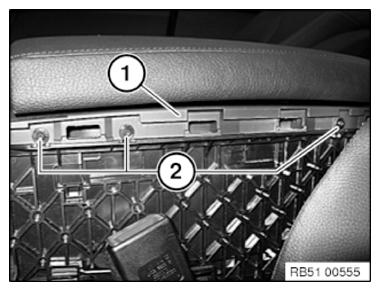

Release left and right bolts (2) on center armrest cover (1).

Tightening torque 51 16 13AZ .

Fig 2: Identifying Bolts On Center Armrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

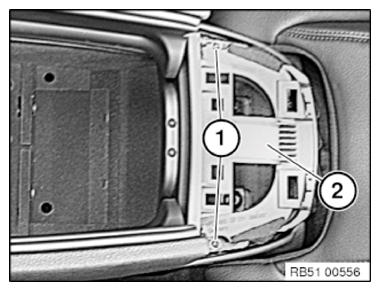

Release screws (1) on back of center armrest cover (2).

Tightening torque 51 16 13AZ .

Raise the rear center armrest cover (2) and pull back slightly.

Fig 3: Identifying Screws Of Center Armrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

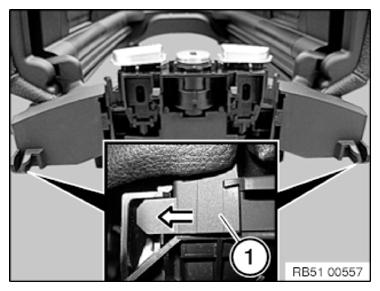

Correctly feed the retaining lugs (1) into the center console support.

Fig 4: Removing Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

F12 only:

Remove the plug connection (1) from the actuator drive (2) and remove the center armrest cover.

Replacement

Rebuild center armrest lock. See 51 16 273 REMOVING AND INSTALLING/REPLACING FASTENER FOR CENTER ARMREST .

Fig 5: Identifying Plug Connection And Actuator Drive
Courtesy of BMW OF NORTH AMERICA, INC.
