51 16 227 Removing and installing/replacing trim on center console at side left or right

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks:

Remove rear seat
Completely move the front seat down and to the back and fold backrest to the rear.

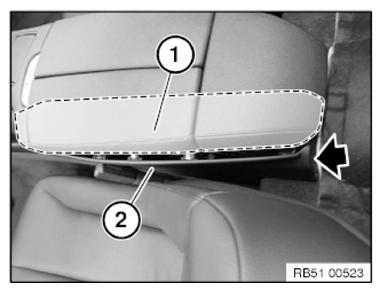

NOTE: Cover the armrest in the marked area (1) to protect the armrest from scratches.

Unclip the cover on the side of the center console (2) from back to front and carefully feed it out toward the top.

Fig 1: Locating Center Console

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Driver's side only:

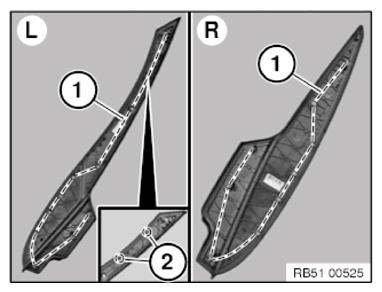

Retaining clips (1) must not be missing or damaged.

Fig 2: Identifying Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Driver's side only (L):

Retaining clips (2) must not be missing or damaged.

Replacement

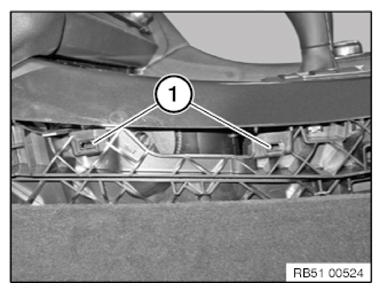

Modify clamp clamps (1).

Fig 3: Identifying Retaining Clips And Clamps
Courtesy of BMW OF NORTH AMERICA, INC.
