51 11 770 Removing and installing/replacing front left or right deformation element for bumper

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove side engine compartment lid gasket mounting in working area. See 51 76 035 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT ENGINE COMPARTMENT LID SEAL LOCATOR .
Remove support for front bumper panel. See 51 11 050 REMOVING AND INSTALLING/REPLACING SUPPORT FOR FRONT BUMPER PANEL .
Release HIGH-PRESSURE NOZZLE OF HEADLIGHT CLEANING SYSTEM .

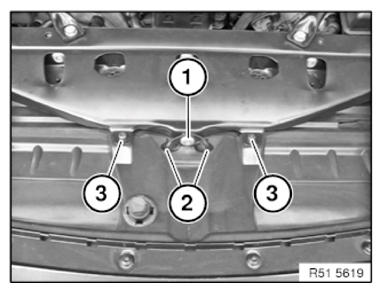

Release screw (1) on V-support (2).

Tightening torque 51 61 6AZ .

Release screws (3).

Fig 1: Identifying Screws Of Deformation Element For Bumper

Courtesy of BMW OF NORTH AMERICA, INC.

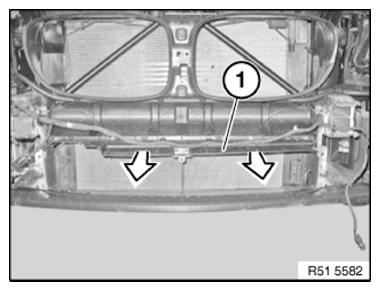

Unclip hose pipe (2) for headlight cleaning system at marked points and set down safely.

Release screws (1) on V-support (3).

Tightening torque 51 11 7AZ .

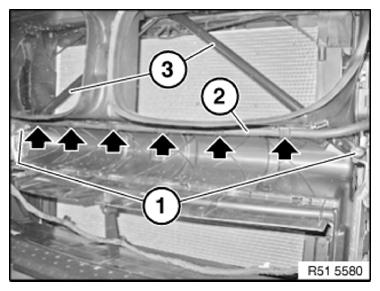

Feed out cross-struts (3).

Fig 2: Locating Hose Pipe

Courtesy of BMW OF NORTH AMERICA, INC.

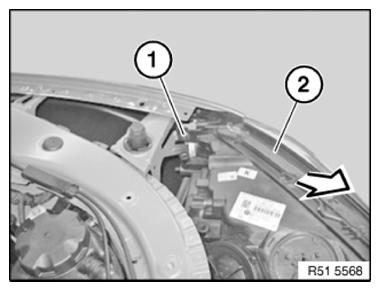

Unclip air duct (1)

Installation note:

Make sure all retaining lugs are correctly latched on air duct (1).

Retaining lugs on air duct (1) must not be missing or damaged.

Fig 3: Removing Retaining Lugs On Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

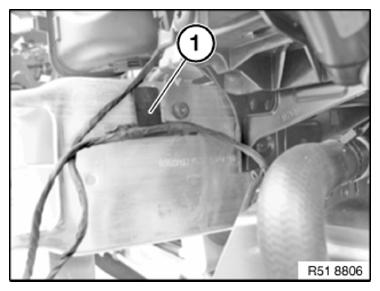

Unclip wiring harness mounting (1).

Fig 4: Identifying Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

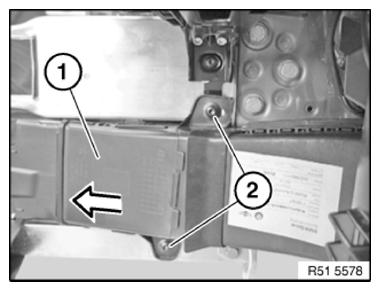

Release screws (2) on brake air duct (1). Remove brake air duct (1) in direction of arrow.

Fig 5: Releasing Screws On Brake Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

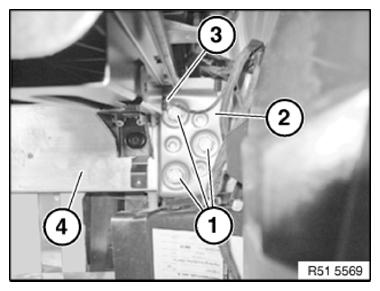

NOTE: For height adjustment, mark position of deformation element (4). Unfasten plug connection (3) and disconnect.

Release bolts (1) on engine support (2).

Tightening torque 51 11 3AZ .

Installation note:

Height adjustment, see 41 00... BODY GAP DIMENSIONS .

Fig 6: Identifying Plug Connection And Bolts On Engine Support

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on cross-member (2).

Tightening torque 51 11 2AZ .

Fig 7: Identifying Screws On Cross-Member

Courtesy of BMW OF NORTH AMERICA, INC.

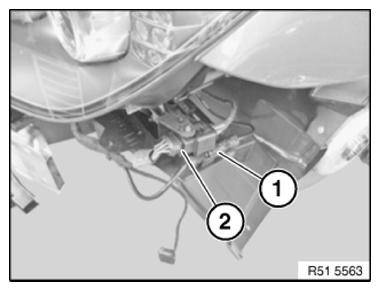

Unlock plug connections (1) and (2) and disconnect.

Fig 8: Identifying Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

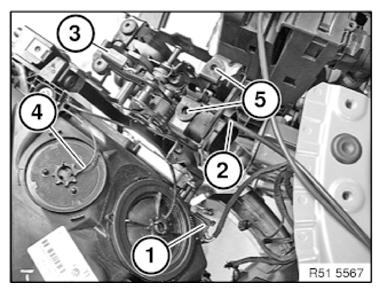

Unlock plug connection (1) on headlights (4) and disconnect.

Disengage Bowden cable (2) from engine compartment lid catch (3).

Release screws (5).

Tightening torque 51 23 2AZ .

Installation note:

Bowden cable (2) must be correctly engaged in engine compartment lid mounts.

Fig 9: Identifying Plug Connection, Bowden Cable And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

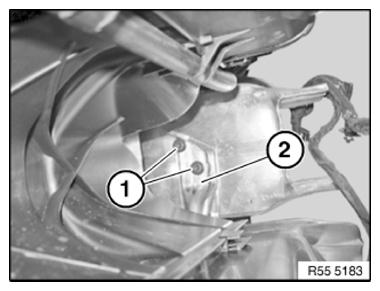

Release screw (2).

Feed out deformation element complete with headlights (2) and lock support in direction of arrow and set down safely.

Fig 10: Removing Deformation Element

Courtesy of BMW OF NORTH AMERICA, INC.

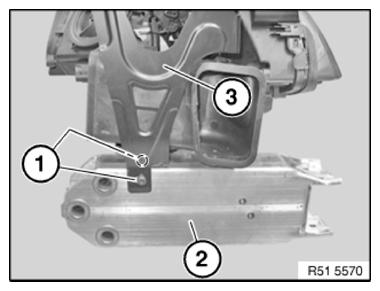

Release screws (1).

Remove deformation element (2) from lock support (3).

Fig 11: Identifying Deformation Element And Screws
