51 11 050 Removing and installing/replacing support for front bumper panel

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front bumper panel. See 51 11 156 REMOVING AND INSTALLING (REPLACING) FRONT BUMPER PANEL .

F06/F12/F13 only:

Remove right headlight See 63 12 012 REMOVING AND INSTALLING (REPLACING) THE RIGHT HEADLIGHT (XENON) or 63 12 017 REMOVING AND INSTALLING (REPLACING) RIGHT HEADLIGHT (ADAPTIVE HEADLIGHT)

Version with active pedestrian protection

Remove pedestrian protection sensor

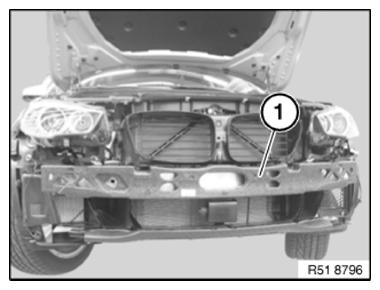

Pull off impact absorber (1) from support.

Installation note:

Connect bottom of impact absorber (1) to support, then press on at top.

Fig 1: Identifying Impact Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

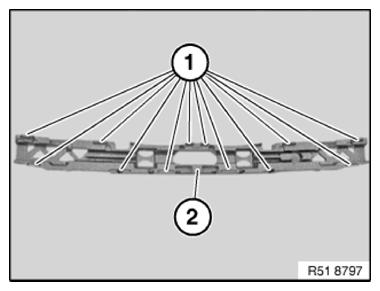

IMPORTANT: Damage to retaining lugs (1) on impact absorber (2) is to be avoided!
For version with active pedestrian protection, impact absorber (2) is not to reused

Fig 2: Identifying Retaining Lugs And Impact Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

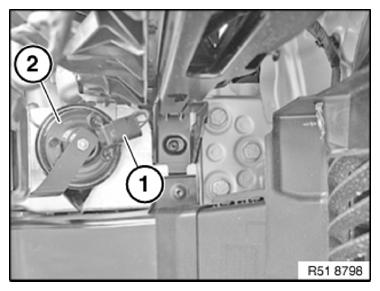

Disconnect connector connections (1) from fanfare horn (2) on left and right.

Fig 3: Identifying Connector Connections And Fanfare Horn

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip wiring harness along marking (1).

If necessary, drill out blind rivet (2).

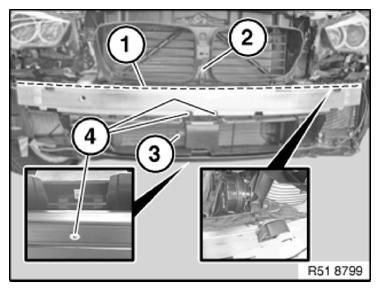

Version with ACC:

Unfasten plug connection (3) and disconnect.

Drill out blind rivets (4).

Fig 4: Identifying Blind Rivets And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

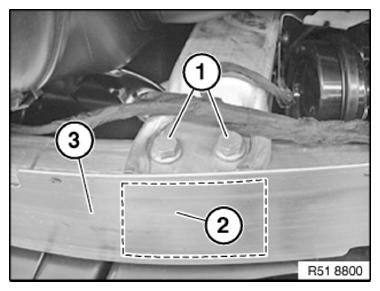

Release screw connection (1) on support (3).

Tightening torque 51 11 4AZ .

Installation note:

Renew self-locking screws/nuts.

Correctly install reinforcement plate (2) on left within the support.

Fig 5: Identifying Screw Connection On Support

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

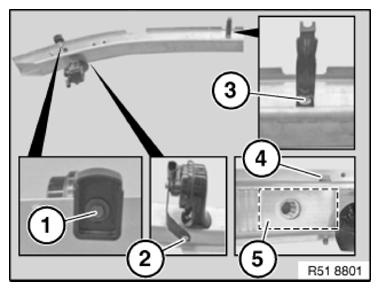

Reposition adapter plates (1) and plastic nuts.

Reposition holder for fanfare horn (2).

Modify holder (3).

Release screw connection (4) from reinforcement plate (5).

Tightening torque 51 11 4AZ .

Reposition reinforcement plate (5).

Installation note:

Replace self-locking screws.

Only apply screw connection (4) after installation of support on deformation element.

Fig 6: Identifying Holder For Fanfare Horn And Adapter Plates
