51 16 040 Removing and installing/replacing housing on left or right exterior mirror

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove retaining ring on exterior mirror . See 51 16 045 REMOVING AND INSTALLING/REPLACING RETAINING RING ON LEFT OR RIGHT EXTERIOR MIRROR (UP TO 07/13) or 51 16 045 REMOVING AND INSTALLING/REPLACING RETAINING RING ON LEFT OR RIGHT EXTERIOR MIRROR (FROM 07/13)
Remove protective cap on exterior mirror . See 51 16 041 REMOVING AND REFITTING/REPLACING PROTECTIVE CAP ON LEFT OR RIGHT EXTERIOR MIRROR (WITH SURROUND VIEW) (TO 07/13) or 51 16 041 REMOVING AND INSTALLING/REPLACING PROTECTIVE CAP ON LEFT OR RIGHT EXTERIOR MIRROR (FROM 07/13)
Remove MIRROR ADJUSTMENT DRIVE

Release screws (1).

If necessary, disconnect the connector (3) from the Top View camera.

Installation note:

Ensure latch mechanism (2) is correctly seated.

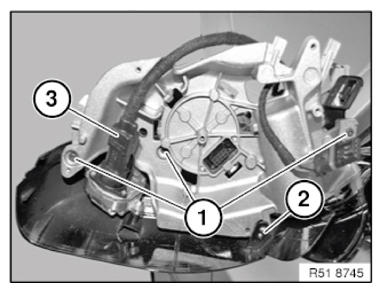

Fig 1: Identifying Exterior Mirror, Connector And Latch Mechanism

G09925900

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully loosen screw holes (1) from exterior mirror (2).

Feed out housing (3) downward.

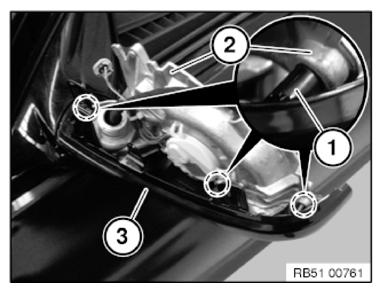

Fig 2: Identifying Exterior Mirror Screw Hole And Housing

G09925901

Courtesy of BMW OF NORTH AMERICA, INC.

Catches (1) and screw holes (2) on housing (3) must not be damaged.

For replacement with Top View camera version:

Move TOP VIEW CAMERA

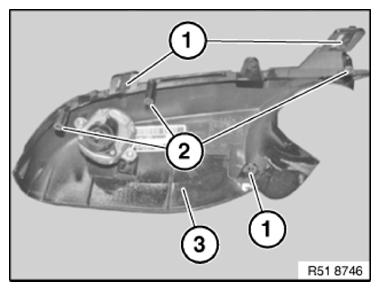

Fig 3: Identifying Exterior Mirror Catches, Screw Holes And Housing
Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks:

Remove RETAINING RING ON EXTERIOR MIRROR

Release screws (1).

Installation note:

Retaining tabs for screws (1) must not be damaged or missing.

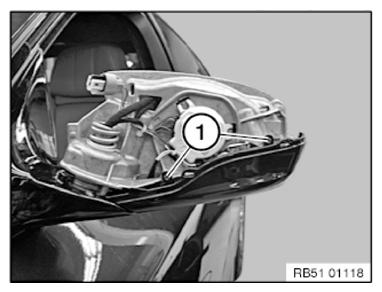

Fig 1: Identifying Exterior Mirror Retaining Tabs

G09925903

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully lift up tab (1) and thread out housing (2) from guide (3) in direction of arrow.

If necessary, unlock plug connection (4) from Top View camera and disconnect.

Installation note:

Tab (1) and guide (3) must not be damaged or missing.

For replacement with Top View camera version:

Move TOP VIEW CAMERA .

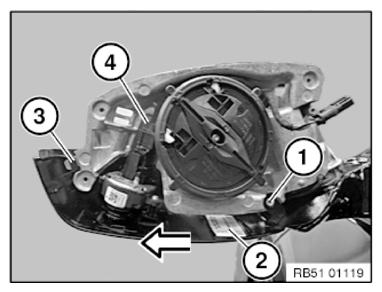

Fig 2: Lifting Exterior Mirror Tab

G09925904

Courtesy of BMW OF NORTH AMERICA, INC.
