51 16 041 Removing and refitting/replacing protective cap on left or right exterior mirror (with surround view) (to 07/13)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks:

Remove MIRROR GLASS

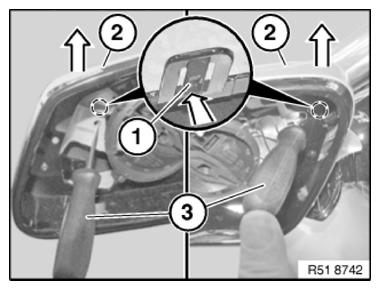

Release cover cap (2) at catches (1) using suitable tool (3).

Fig 1: Releasing Mirror Cover Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Secure cover cap (2) against falling off.

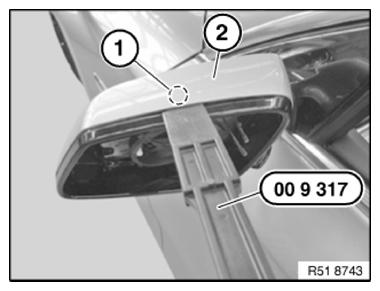

Release catch (1) using special tool 00 9 317 and carefully pull cover cap (2) upwards and remove.

Fig 2: Releasing Mirror Catch Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

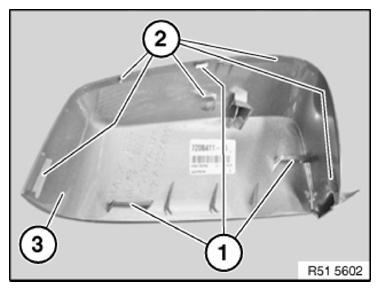

Catches (1) and guides (2) on cover cap (3) must not be damaged.

Fig 3: Identifying Mirror Catches, Guides And Cover Cap

Courtesy of BMW OF NORTH AMERICA, INC.
