51 16 045 Removing and installing/replacing retaining ring on left or right exterior mirror (from 07/13)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DRIVE UNIT FOR EXTERIOR MIRROR
Remove PROTECTIVE CAP

Version with lane change warning:

Unlock plug connection (1) for optical signal transmitter and disconnect.

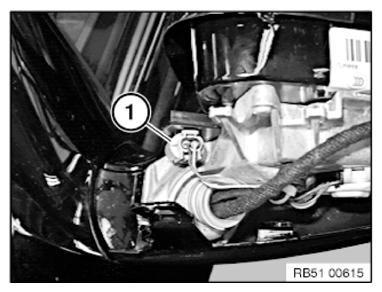

Fig 1: Identifying Exterior Mirror Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1 and 2).

Installation note:

Note installation position of screws (1 and 2).

Screws (1) - metric thread
Screw (2) non-metric thread

Make sure retaining ring (3) is correctly seated (arrows).

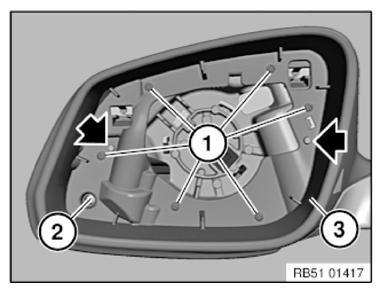

Fig 2: Locating Exterior Mirror Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release latch mechanism (1) and feed out retaining ring (2) towards rear.

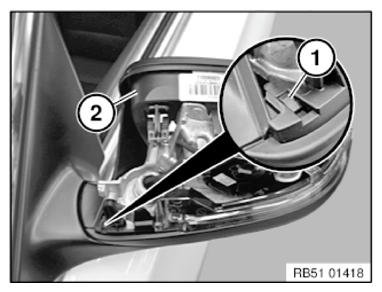

Fig 3: Locating Exterior Mirror Latch Mechanism And Retaining Ring

Courtesy of BMW OF NORTH AMERICA, INC.
