51 16 045 Removing and installing/replacing retaining ring on left or right exterior mirror (up to 07/13)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove MIRROR GLASS
Remove MIRROR ADJUSTMENT DRIVE

Release screws (1).

Carefully bend exterior mirror protective cap outwards and carefully unclip retaining ring (2).

Latch mechanisms on retaining ring (2) and retaining lugs on protective cap must not be damaged in the process.

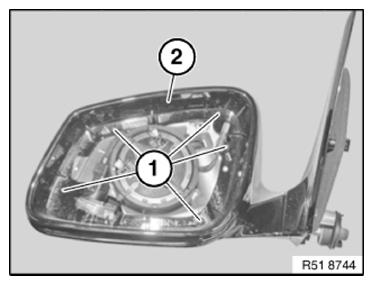

Fig 1: Identifying Exterior Mirror Retaining Ring And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Version with lane change warning:

Also unlock and disconnect plug connection (1) for optical signal transmitter (2).

Remove retaining ring (3).

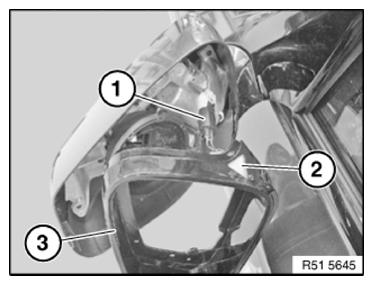

Fig 2: Identifying Optical Signal Transmitter Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
