51 16 040 Removing and installing/replacing housing on left or right exterior mirror

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove retaining ring on exterior mirror. See RETAINING RING (UP TO 07/13) or RETAINING RING (FROM 07/13) .
Remove protective cap on exterior mirror. See COVER CAP or PROTECTIVE CAP (FROM 07/13) .
Remove MIRROR ADJUSTMENT DRIVE

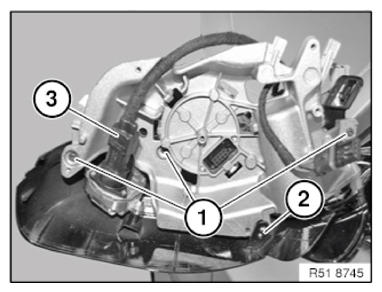

Release screws (1).

If necessary, disconnect the connector (3) from the Top View camera.

Installation note:

Ensure latch mechanism (2) is correctly seated.

Fig 1: Identifying Screws, Connector And Latch Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

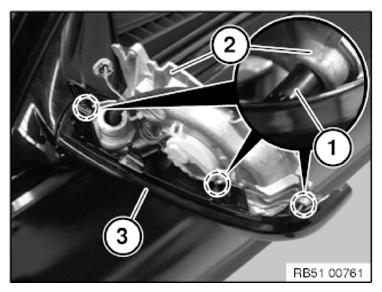

Carefully loosen screw holes (1) from exterior mirror (2).

Feed out housing (3) downward.

Fig 2: Identifying Screw Holes From Exterior Mirror And Housing

Courtesy of BMW OF NORTH AMERICA, INC.

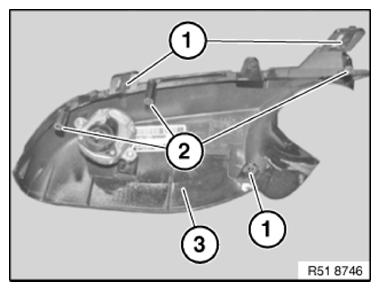

Catches (1) and screw holes (2) on housing (3) must not be damaged.

For replacement with Top View camera version

Move TOP VIEW CAMERA

Fig 3: Identifying Catches And Screw Holes On Housing
Courtesy of BMW OF NORTH AMERICA, INC.
