51 16 041 Removing and installing/replacing cover cap on left or right exterior mirror

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary work:

Remove MIRROR GLASS

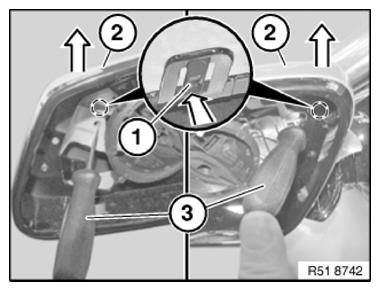

Release cover cap (2) at catches (1) using suitable tool (3).

Fig 1: Releasing Cover Cap At Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Secure cover cap (2) against falling off.

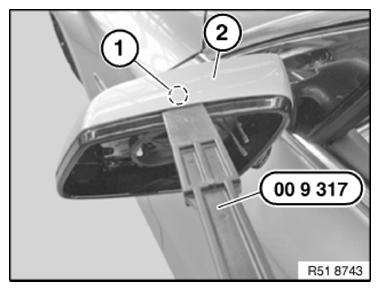

Release catch (1) using special tool 00 9 317 and carefully pull cover cap (2) upwards and remove.

Fig 2: Releasing Catch

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

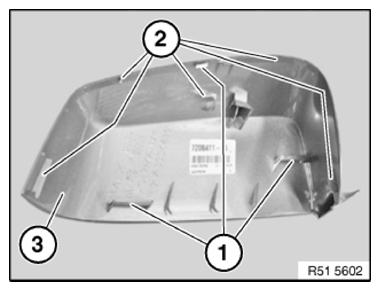

Catches (1) and guides (2) on cover cap (3) must not be damaged.

Fig 3: Identifying Catches, Guides On Cover Cap

Courtesy of BMW OF NORTH AMERICA, INC.
