51 16 045 Removing and installing/replacing retaining ring on left or right exterior mirror (from 07/13)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DRIVE UNIT FOR EXTERIOR MIRROR
Remove PROTECTIVE CAP

Version with lane change warning:

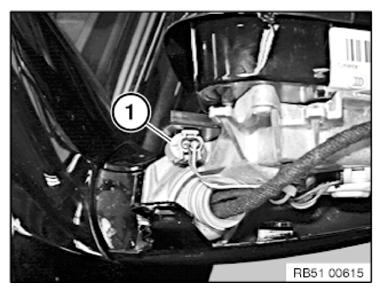

Unlock plug connection (1) for optical signal transmitter and disconnect.

Fig 1: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

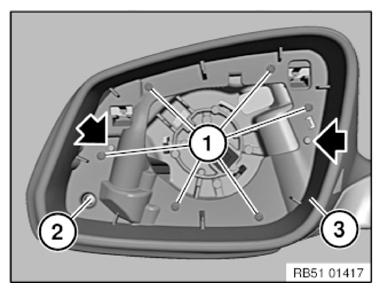

Release screws (1 and 2).

Installation note:

Note installation position of screws (1 and 2).

Screws (1) - metric thread
Screw (2) non-metric thread

Make sure retaining ring (3) is correctly seated (arrows).

Fig 2: Locating Retaining Ring

Courtesy of BMW OF NORTH AMERICA, INC.

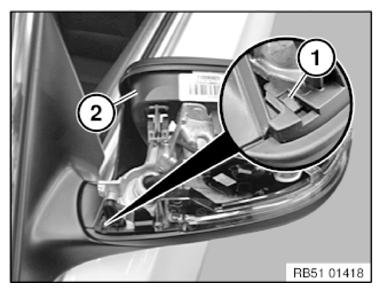

Release latch mechanism (1) and feed out retaining ring (2) towards rear.

Fig 3: Identifying Latch Mechanism And Retaining Ring

Courtesy of BMW OF NORTH AMERICA, INC.
