52 26 411 Replacing backrest cover for left rear seat

Special tools required:

• 52 0 050

Necessary preliminary tasks:

• Remove left BACKREST
• Remove SKI BAG
• Remove BACKREST ACTUATOR TRIM AND LOCK TRIM
• Only on vehicles with 5 seats:

  Remove head restraint

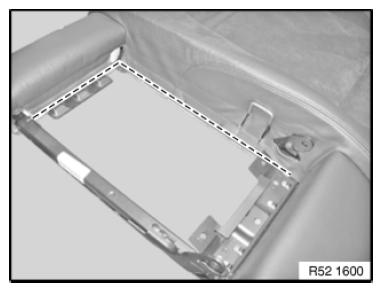

Lever trim wire out of metal claws in marked area.

Fig 1: Identifying Trim Wire Marked Area

Courtesy of BMW OF NORTH AMERICA, INC.

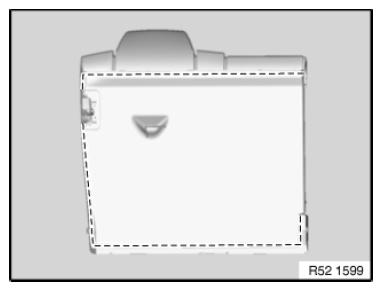

Lever out welt in marked area of rear panel.

Remove backrest cover with padding.

Fig 2: Identifying Rear Panel Marked Area

Courtesy of BMW OF NORTH AMERICA, INC.

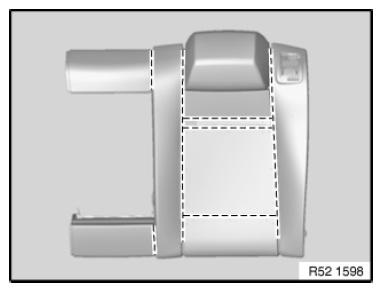

Detaching cover and upholstery:

• Release all clamps in marked area
• Remove cover from upholstery
• Remove remaining clamps from cover and upholstery

Replacement only:

• Pull all trim wires out of cover
• If necessary, cut pockets in new cover for trim wires
• Push trim wires into cover pockets
  Fig 3: Removing Cover And Upholstery Clamp Marked Area

  Courtesy of BMW OF NORTH AMERICA, INC.

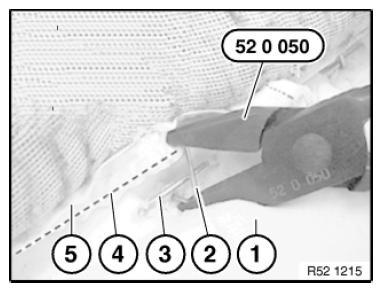

Installation note:

Insert new clamp (2) with special tool 52 0 050 and bend closed.

1. Upholstery
2. Clamp
3. Trim wire in upholstery
4. Trim wire in seat cover
5. Backrest cover
   Fig 4: Bending Clamp End Using Special Tool (52 0 050)

   Courtesy of BMW OF NORTH AMERICA, INC.
