52 26... Removing and installing/replacing ski bag on rear seat

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks:

Remove ARMREST

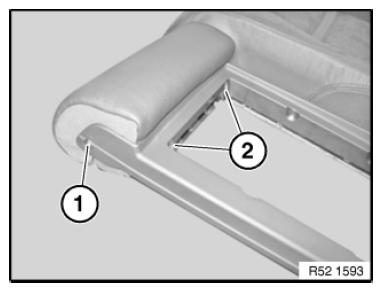

Release screw (1).

Unfasten screws (2).

Tightening torque: 52 26 09AZ .

Fig 1: Identifying Armrest Screws

Courtesy of BMW OF NORTH AMERICA, INC.

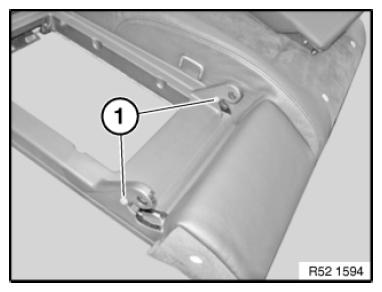

Release screws (1).

Tightening torque 52 26 09AZ .

Fig 2: Identifying Armrest Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out pins.

Fig 3: Removing Armrest Cover Pins

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out rear ski bag frame (1) if necessary with special tool 00 9 317 .

IMPORTANT: Risk of damage!
Plastic eyelets of front trim ski bag trim can break.
If necessary, replace faulty ski bag trim.

Fig 4: Identifying Rear ski Bag Frame

Courtesy of BMW OF NORTH AMERICA, INC.

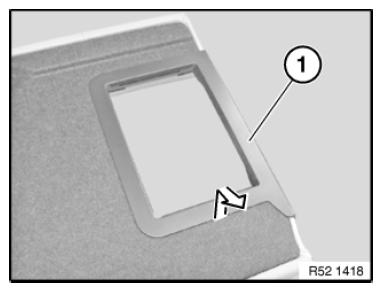

Unclip front ski bag trim (1) towards top.

Installation:

Plastic eyelets of front ski bag trim must not be damaged.

If necessary, replace faulty ski bag trim.

Fig 5: Disconnecting Front ski Bag Trim

Courtesy of BMW OF NORTH AMERICA, INC.
