52 26 311 Removing and installing/replacing lock for left or right rear seat backrest

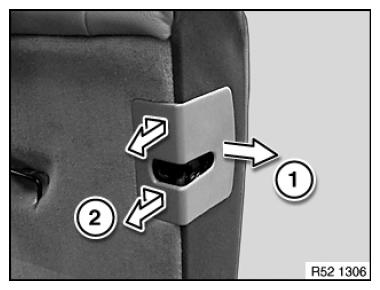

Unclip lock trim on backrest edge in direction of arrow (1).

Slide back of lock trim in outward direction and remove in direction of arrow (2).

Fig 1: Disconnecting Backrest Edge Lock Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

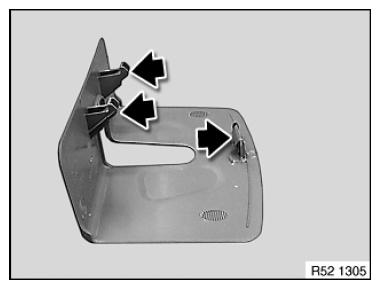

Retaining lugs on trim must not be damaged.

Fig 2: Locating Trim Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

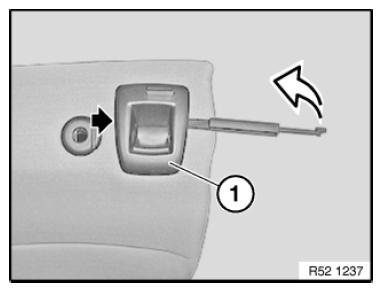

Insert plastic wedge from outside between trim (1) and lock.

Carefully lever outer side of trim (1) with plastic wedge upwards out of catch.

Lever inner side of trim (1) with plastic wedge out of catch.

Remove trim upwards.

Fig 3: Removing Inner Side Trim

Courtesy of BMW OF NORTH AMERICA, INC.

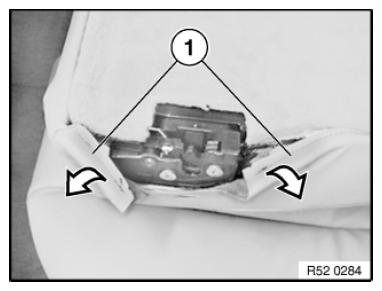

Lever out backrest cover (1) in working area.

Fig 4: Removing Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

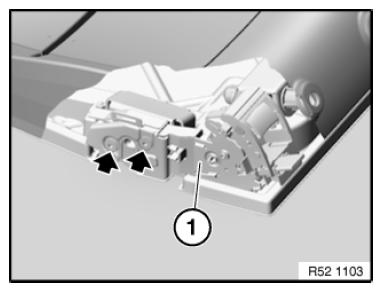

Release screws and feed lock (1) out of rear seat backrest.

Tightening torque: 52 26 05AZ .

Fig 5: Locating Rear Seat Backrest Feed Lock Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.
