52 26 020 Removing and installing/replacing backrest for left or right rear seat

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM ON C-PILLAR on left or right
Remove REAR SEAT

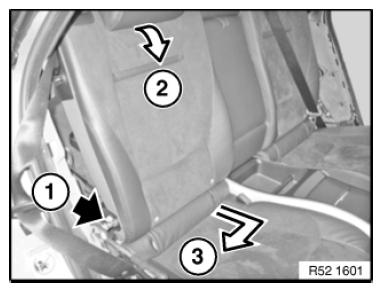

Right backrest:

NOTE: Use a short Torx attachment to release screw (1).

Release screw (1).
Tightening torque: 52 26 04AZ .
Fold backrest forwards slightly (2)
Pull backrest forwards and outwards out of center mount (3)

Fig 1: Removing C-Pillar Left Or Right Trim
Courtesy of BMW OF NORTH AMERICA, INC.

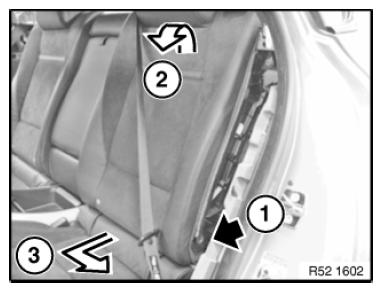

Left backrest:

Release screw (1).
Tightening torque: 52 26 04AZ .
Fold backrest forwards slightly (3)
Pull backrest forwards and outwards out of center mount (4)

Fig 2: Pulling Backrest Forwards And Outwards From Centre Mount
Courtesy of BMW OF NORTH AMERICA, INC.
