24 00 036 Removing and installing automatic transmission (GA7AHSCD)

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

WARNING: High-voltage system - danger to life!

NOTE: Observe SAFETY INFORMATION for handling hybrid cars

IMPORTANT: After completion of repair work, check TRANSMISSION OIL LEVEL .
Use only the approved transmission oil: Dexron VI automatic transmission fluid (GM)
Failure to comply with this requirement will result in serious damage to the automatic transmission!

NOTE: Observe notes on UNLOCKING AND DISCONNECTING different types of plugs in hybrid cars.

Necessary preliminary tasks:

Remove PROPELLER SHAFT
DE-ENERGIZE THE HIGH-VOLTAGE SYSTEM
Disconnect the battery. See NOTES FOR DISCONNECTING/CONNECTING BATTERY and CONNECTING/DISCONNECTING BOTH NEGATIVE BATTERY CABLES .
Remove both INTAKE SILENCER HOUSINGS
Remove REINFORCEMENT PLATE
Remove EXHAUST SYSTEM
Remove front UNDERBODY PROTECTION
Remove FRONT PROPELLER SHAFT

Release screws (1) and remove retaining bracket (2).

Fig 1: Identifying Retaining Bracket And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

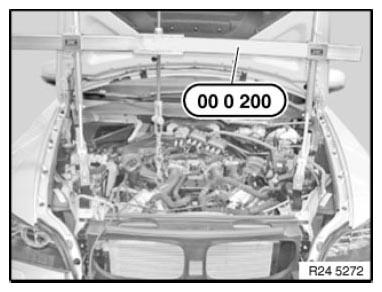

Attach engine on front suspension lug.

Secure engine to prevent from tilting by slightly tensioning chain after removing gearbox.

(Operations for preparing and using the engine traverse member 00 0 200 are described under SECURE ENGINE IN INSTALLATION POSITION and must be observed without fail.)

Fig 2: Securing Engine Using Engine Traverse Member

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Screw connection of engine mount is not released.

Unlock and detach connectors (1) and (2).

Fig 3: Identifying Automatic Transmission Connectors

Courtesy of BMW OF NORTH AMERICA, INC.

Open thermal protection coating (1).

Push lock (2) up to stop.

Disconnect connector and release high-voltage cable from holder.

Installation note:

Lock (2) must snap audibly into place.

Perform pull-off test to check whether plug connection is locked.

Fig 4: Identifying Thermal Protection Coating And Lock

Courtesy of BMW OF NORTH AMERICA, INC.

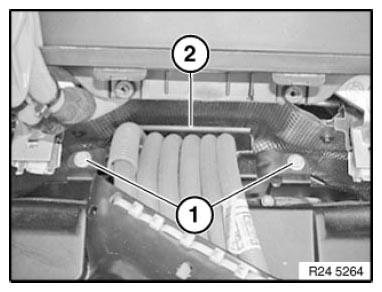

Release screw (1) and holder from gearbox oil lines.

Tightening torque 17 22 3AZ .

Fig 5: Identifying Gearbox Oil Lines Holder Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 17 22 1AZ .

Disconnect hydraulic lines (2) to transmission oil cooler.

Seal off connections and lines with plugs!

Installation note:

Replace sealing rings.

Fig 6: Identifying Hydraulic Lines And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug (1).

Insert special tool 24 2 390 in sealing sleeve (1).

Disconnect plug (2).

Seal sealing sleeve (2) with suitable means (e.g. adhesive tape) to prevent dirt contamination.

Release cable from holders.

Fig 7: Identifying Plug And Sealing Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and remove crankshaft sensor.

Disengage cable from holder (2).

Detach connector (3) from oil pressure switch.

Fig 8: Identifying Connector, Holder And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock retainer (1).

Disconnect connector (2).

Fig 9: Identifying Retainer And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Supporting transmission:

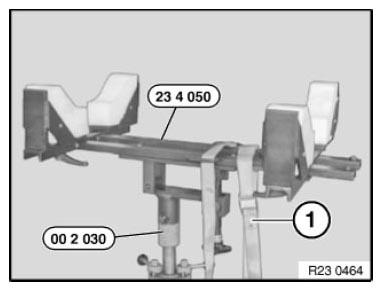

Support gearbox with hydraulic lifting equipment 00 2 030 and special tool 23 4 050 .

Secure transmission to mounting with tensioning strap (1).

Tasks are described in GEARBOX HOLDER .

Fig 10: Supporting Gearbox With Hydraulic Lifting Equipment (00 2 030) And Special Tool (23 4 050)

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Tightening torque 22 32 4AZ .

Fig 11: Identifying Transmission Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

When unflanging the gearbox, pay attention to installation position of rubber connectors (1).

(Similar picture)

Fig 12: Identifying Rubber Connectors

Courtesy of BMW OF NORTH AMERICA, INC.

Lower transmission.

Release screws.

Tightening torque 24 00 1AZ .

Screw guide pins 24 0 320 for guiding gearbox into two opposite screw points while dismantling.

Lift up gearbox into initial position again after opening gearbox screws until transmission cross-member makes full contact with body.

Fig 13: Locating Gearbox Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Then lower gearbox by approx.15 mm (cross member to tunnel).

In this position, the gearbox is pulled off the gearbox input shaft.

Lower gearbox by approx.30 cm.

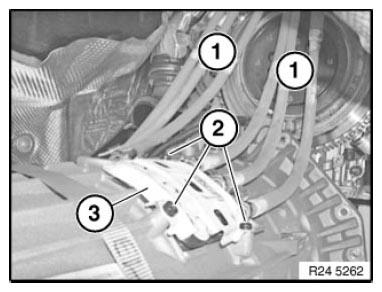

Guide high-voltage cable (1) downwards during lowering.

Release screws (2) for covers (3).

Tightening torque 24 00 2AZ .

Installation note:

Pay attention to danger of damage to high-voltage cables.

(Graphic illustration right side. Left side is identical.)

Fig 14: Identifying High-Voltage Cable, Screws And Covers

Courtesy of BMW OF NORTH AMERICA, INC.

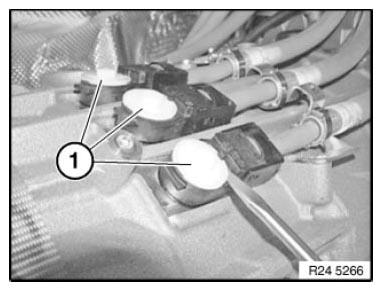

Lift out covers (1) in upward direction with screwdriver.

Installation note:

Check covers and O-rings. replacing if necessary.

(Picture shows right side. Left side is identical.)

Fig 15: Lifting Out Covers With Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

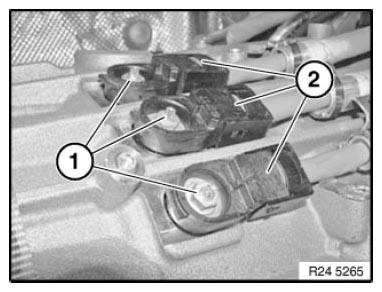

Unscrew nuts (1).

Tightening torque 24 00 3AZ .

Disconnect high-voltage connections (2).

Installation note:

Check O-rings. replacing if necessary.

(Picture shows right side. Left side is identical.)

Fig 16: Identifying High-Voltage Connections And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Apply a thin coating of "MI-Setral-43N" grease to gearbox input shaft.

BMW part number EU: 83 23 2 152 082

BMW part number US version: 83 23 2 152 081

IMPORTANT: Remove high-voltage cable in upward direction and check for damage.
Damaged high-voltage cables must be replaced without fail.

Installation note:

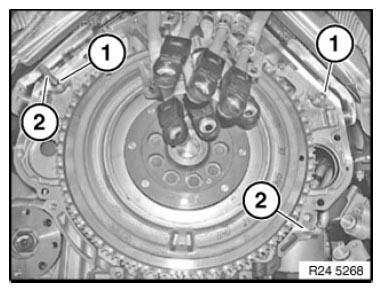

Check that fitting sleeves (1) are correctly seated.

Replace damaged fitting sleeves.

Screw in guide pins (2) 24 0 320 for guide of gearbox during installation.

Fit gearbox and secure with two screws.

Unscrew guide pins (2) and flange-mount gearbox on engine.

Reassemble the vehicle.

Fig 17: Identifying Fitting Sleeves And Guide Pins

Courtesy of BMW OF NORTH AMERICA, INC.
